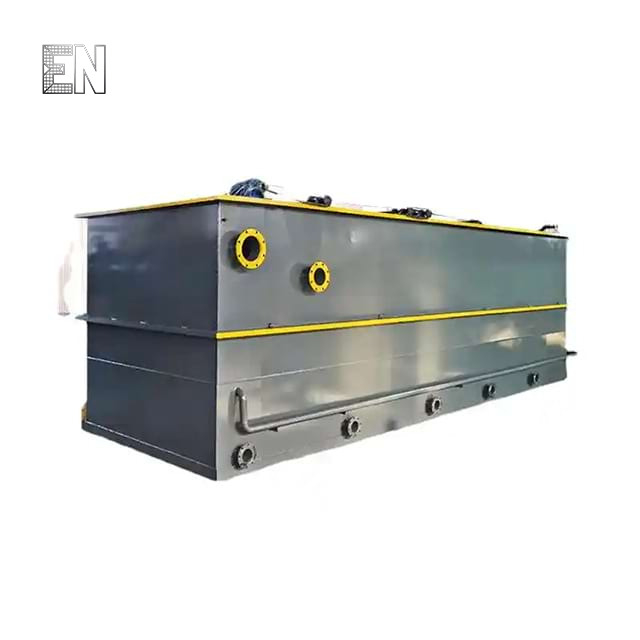

Air Flotation Machine

Air flotation machine is a sewage treatment equipment that uses the principle of air flotation to remove suspended matter, grease, algae and other impurities in the water.The dissolved air system generates a large number of tiny bubbles in the water, which attach to the impurity particles and make them float on the water surface by the buoyancy principle, thus achieving solid-liquid/liquid-liquid separation.According to their functions, flotation machines are divided into four types: dissolved air flotation machines, shallow air flotation machines, vortex air flotation machines, and horizontal flow air flotation machines.

Availability:

Quantity:



Inquire Add to Basket

Waste water treatment VOC Concentrator Waste Gas Treatment Chemical reactor Fine Chemical EPC

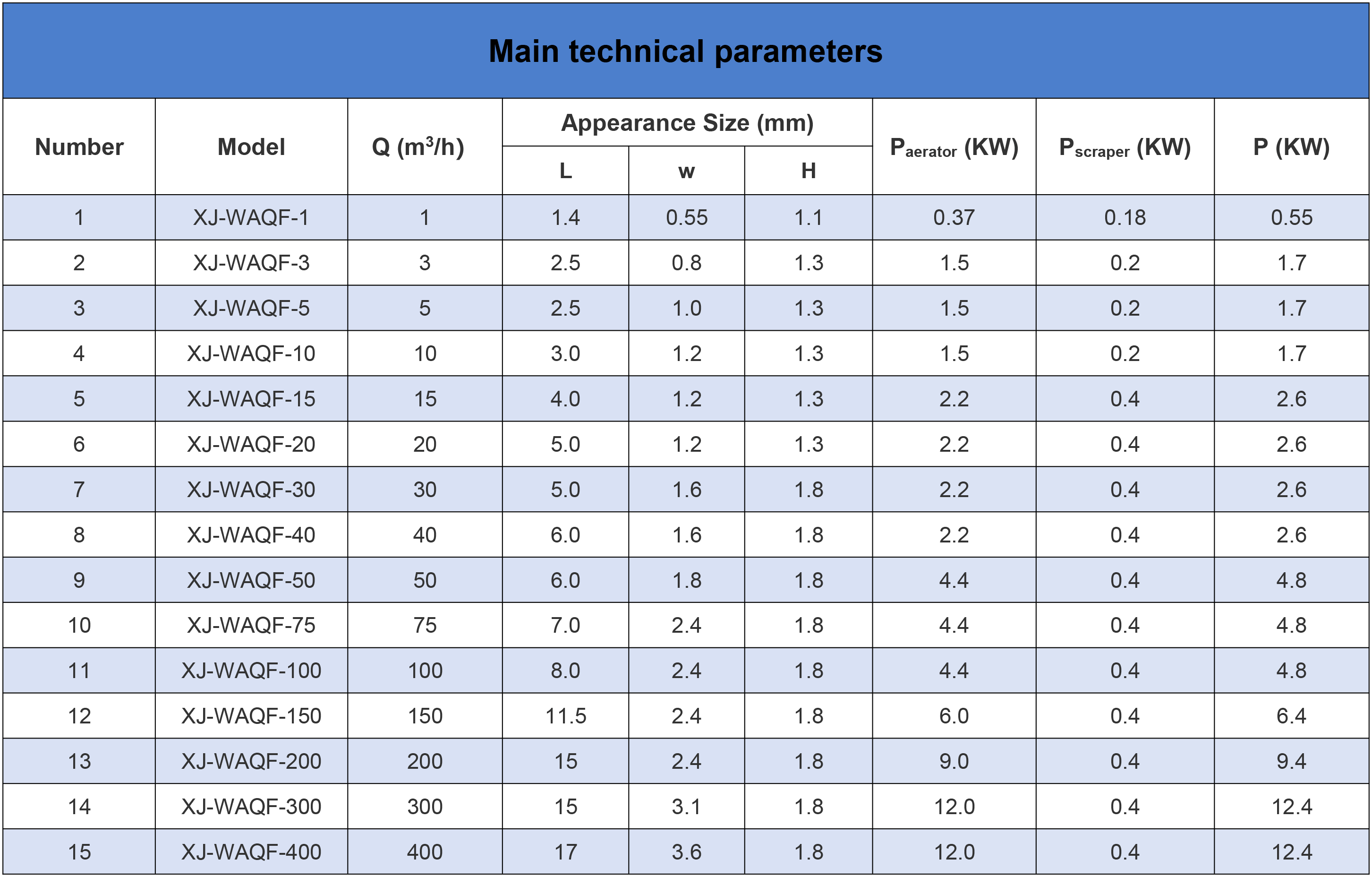

Technical Parameters

Working Principle

Product Advantage

Application

FAQ

Working Principle

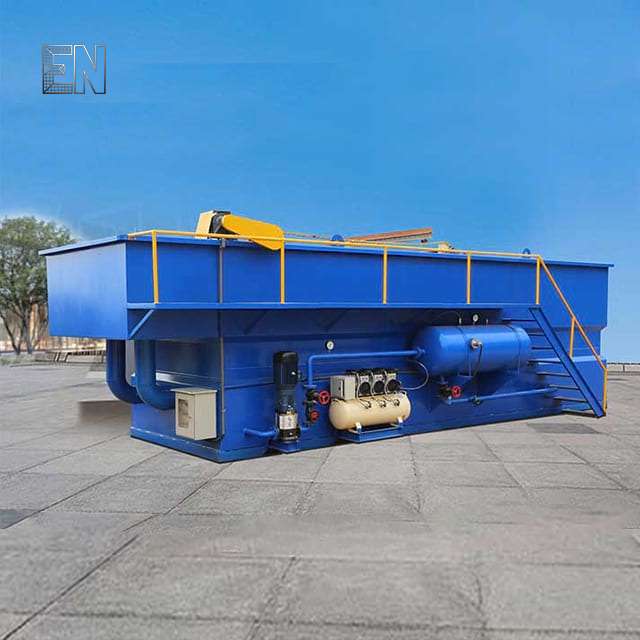

The flotation machine mainly consists of three parts, namely the pressure dissolved air system (including water pump, air compressor, pressure dissolved air tank and other auxiliary equipment), the dissolved air release system and the flotation separation system.

After the compressed air enters the container, it quickly dissolves in the water, saturating oxygen and other gases. After reducing the pressure, the supersaturated gas precipitates in the form of tiny bubbles. The bubbles absorb the suspended pollutants in the wastewater through physical adsorption and chemical reactions, and slowly rise to the water surface under the action of buoyancy to form foam. The foam can be collected and discharged out of the system by scrapers, skimmers, etc., while the purified water flows out from the bottom to achieve solid-liquid/liquid-liquid separation.

Product Features

The air flotation machine has a compact structure and relatively small footprint. The air flotation machine can be flexibly arranged and installed according to the actual situation of the project site.

Small footprint
The air flotation machine is easy to operate and simple to manage and maintain. It can realize automatic control and reduce the cost of manual operation and management.

High degree of automation
The air flotation machine can accurately control the generation and distribution of bubbles. The diameter of the bubbles generated by the air flotation machine is usually between 20-100㎛. These bubbles have good dispersibility and stability. They can effectively remove impurities such as suspended matter and grease in the water, thereby ensuring the water quality of the outlet water.

Stable treatment effect

Application

Industrial wastewater

Industrial wastewater often contains a large amount of grease, colloids, heavy metals and other particulate pollutants that are difficult to settle. The flotation machine can effectively remove these impurities, reduce the color, turbidity, COD and other indicators of the wastewater, and create conditions for subsequent treatment.

Resource recycling

It is worth noting that the flotation machine can also realize the recycling and reuse of resources. In metal smelters, it is used to recycle precious metals such as Cu and Al. In agricultural irrigation systems, it is used to recycle nutrients in irrigation tail water. This not only helps to save natural resources, but also brings additional economic benefits to enterprises.

Ecological governance

Air flotation machines play an important role in ecological environmental protection. In river and lake governance, they are mainly used to remove plankton and garbage on the water surface. In the process of offshore oil extraction, air flotation machines can effectively recover leaked crude oil, thereby reducing damage to the marine ecosystem.

Waterworks

Air flotation machines are widely used in urban and rural drinking water projects. Through the pretreatment of air flotation machines, the sediment, algae and other microorganisms in the water source are effectively removed, ensuring the safety and reliability of the final water supply.

FAQs

Precautions for operation of flotation machine

(1) Influent water volume: A flow meter should be installed at the water inlet of the flotation machine to control the reagent ratio and influent load.
(2) Influent pH: The pH of the sewage entering the flotation system needs to be controlled at 7-8. A pH that is too low will affect the flocculant's flocculant effect; a pH that is too high will not only cost operating costs, but also affect the operation of the back-end biochemical unit.
(3) Agent selection: It is recommended to select solid PAC with a content of 26%, or liquid PAC with a content of 10%; select liquid caustic soda or flake caustic soda with a content of 30%; select PAM with a content of 1-1.5‰.
(4) Dissolved gas pressure: When the pressure is 0.4~0.5Mpa, a large number of dense microbubble groups will be formed, and the flotation effect is the best.
(5) Releaser selection: It is recommended to use a TV type releaser, which can overcome problems such as uneven water distribution and pipe blockage.
(6) Others: It is recommended to drain mud regularly to avoid high suspended solids in the outlet water. It should be noted that the scraper plate liquid level should match the water output of the outlet valve.
