Intermittent VOC emissions are harder to control than steady exhaust because the system must respond to changing airflow, changing concentration, and production stops. A Cylindrical Zeolite Rotor can help stabilize this type of VOC treatment route by adsorbing pollutants during process operation and releasing them through controlled desorption. Eco Nova Group, located in Dezhou, Shandong Province, provides VOC concentration and integrated waste gas treatment equipment for plants that need practical solutions for variable working conditions.
A continuous exhaust stream is easier to calculate and control. Engineers can review airflow, VOC concentration, solvent composition, temperature, and operating hours with fewer sudden changes. Intermittent emissions are different. The exhaust load may rise sharply during coating, curing, cleaning, solvent replacement, or batch production, then drop again when the process pauses.
This changing pattern affects both the front-end adsorption section and the downstream oxidation equipment. If the system is designed only according to a simple average value, it may fail to respond properly when short VOC peaks appear.
VOC peaks and airflow peaks do not always happen at the same time. A production line may keep the same ventilation airflow while VOC concentration rises during a short coating cycle. Another process may increase exhaust airflow during cleaning while the VOC concentration changes unevenly.
Batch production is a common example. A reactor, drying chamber, or mixing tank may release VOCs only during certain steps. For most of the day, the exhaust may look moderate. During one short discharge period, the load can increase quickly.
Coating and curing processes also create uneven loads. The coating booth may release solvent vapor during application, while the drying or curing section produces another emission pattern. If both streams are connected to one system, the VOC treatment equipment must be ready for changing loads.
Downstream oxidizers such as CO, RTO, or RCO need stable inlet conditions to operate efficiently. When the VOC load changes sharply, the thermal balance may also change. If the inlet stream suddenly becomes weak, the oxidizer may need more auxiliary heat. If the concentration rises quickly, the system must keep the temperature and safety control within the proper range.
Start-stop production makes this more difficult. A treatment system may need to handle warm-up, shutdown, low-load periods, and peak emissions in the same day. Without a suitable buffer or concentration design, the downstream unit may face unstable operation.
This is why intermittent emission projects should not be designed only by looking at one average VOC concentration. The real emission rhythm matters.

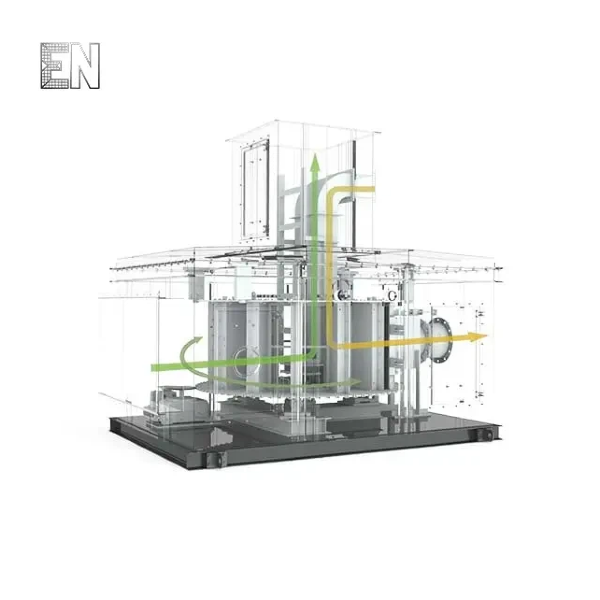

A cylindrical zeolite rotor supports intermittent VOC treatment by adding adsorption capacity and controlled regeneration into the system. During operation, VOC-containing gas passes through the rotor, and VOC molecules are captured by the zeolite material. During desorption, a smaller heated airflow removes the captured VOCs and sends them toward the final treatment unit.
This process can help smooth the load before downstream oxidation. Instead of sending every short VOC peak directly to the oxidizer, the rotor can adsorb VOCs and release them in a more controlled way. For intermittent projects, this buffering effect is important.
The cylindrical structure also provides flexible design value. Compared with a simple fixed-bed system, a rotating adsorption component can support continuous adsorption and desorption. Compared with some traditional disc layouts, cylindrical rotor design can be considered for projects where emission rhythm, layout, or integration requirements need more careful planning.
Intermittent challenge | Rotor-related design point | Expected benefit |
Short VOC peaks | Adsorption capacity | Better load buffering |
Process shutdowns | Regeneration timing | More stable operation |
Variable solvents | Zeolite selection | Better adsorption match |
Limited space | Cylindrical structure | Flexible layout planning |
Downstream oxidizer load | Desorption control | Smoother concentrated stream |
The table shows why the rotor should be selected according to working conditions, not only according to standard airflow capacity. Intermittent emissions need a design that can handle both normal operation and short-term changes.
A rotor selection discussion should begin with project data. If the information is incomplete, the system may be sized too small for peaks or too large for daily operation. Eco Nova Group recommends reviewing both emission data and process rhythm before confirming the route.
Average VOC concentration is useful for estimating daily load and general operating cost. Peak concentration is useful for checking system capacity, desorption load, and safety control. Both values are needed.
For intermittent projects, average concentration can hide risk. A plant may report a moderate daily value, but one cleaning cycle or curing stage may create a much higher short-term concentration. If this peak is not included, the rotor and downstream system may not be prepared for real operation.
The project team should record concentration changes during different process steps. If possible, test data should include normal production, peak operation, cleaning, shutdown, and restart periods.
The rotor regeneration strategy should match the production rhythm. If VOC emissions occur in short bursts, the system needs enough adsorption capacity to capture the peak and enough desorption control to release the VOCs smoothly.
Cycle time matters. A coating line running continuously for several hours has different requirements from a batch process that releases VOCs for ten minutes every hour. The rotor speed, adsorption zone, desorption airflow, and control strategy should be reviewed around the actual emission cycle.
Production planning is also useful. If the plant changes products frequently or uses different solvents in different shifts, the system should be designed with enough flexibility.
Zeolite material should match the actual VOC mixture. Aromatics, esters, ketones, alcohols, and other organic compounds have different adsorption and desorption behavior. Moisture, temperature, and solvent boiling point can also affect performance.
A general “total VOC” value is not enough for final design. The plant should provide main solvent names, material safety data, process description, and possible contaminants. This helps determine whether the rotor material and desorption conditions are suitable.
Solvent compatibility also affects downstream treatment. Some streams may be suitable for CO, some may need RCO, and others may need RTO. The rotor is part of the whole system route, so it should be selected together with the final treatment technology.

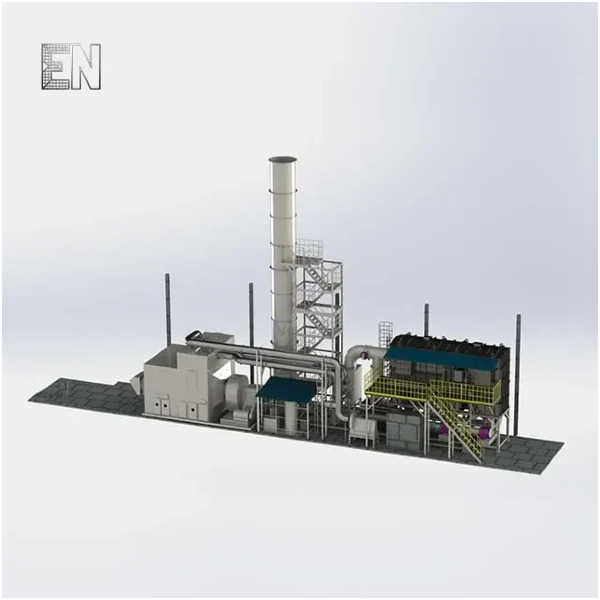

The rotor is the core adsorption component inside a VOC concentration route. A VOC Concentrator uses the rotor to capture VOCs from a larger exhaust stream and release them into a smaller concentrated stream. This reduces the gas volume sent to downstream treatment.
For intermittent emissions, this function becomes even more valuable. The rotor can help manage short peaks and create a more controlled desorption stream. This makes the downstream oxidizer easier to operate compared with receiving every raw emission change directly.
A VOC Concentrator system should therefore be reviewed as a complete route. Airflow, rotor capacity, concentration ratio, desorption temperature, filtration, fan design, and downstream oxidation must work together.
Filtration is especially important. Dust, paint mist, oil mist, and sticky particles may block the rotor channels or affect adsorption performance. Good pretreatment helps protect the rotor and keeps pressure drop stable during long-term operation.
The right back-end technology depends on VOC concentration, solvent composition, temperature, airflow, catalyst suitability, and energy strategy. The rotor prepares the gas stream, but the final treatment unit still decides how VOCs are destroyed.
CO may be suitable for clean, catalyst-friendly VOC streams that can benefit from lower-temperature catalytic treatment. RCO may be suitable for medium-concentration organic waste gas that needs catalyst-assisted oxidation with regenerative heat recovery. RTO may be suitable when the plant needs strong thermal oxidation for more complex or higher-load exhaust.
A Cylindrical Zeolite Rotor With CO/RTO/RCO gives the project team more flexibility when designing a complete treatment route. The rotor concentrates the VOCs first, while the selected downstream unit handles final oxidation according to the actual gas condition.
This pairing should not be decided only by equipment preference. It should follow data: peak and average VOC concentration, airflow range, solvent type, temperature, humidity, emission standard, and operating schedule. When these points are clear, the system route becomes more reliable.
For Eco Nova Group, a Cylindrical Zeolite Rotor should be selected around the real emission rhythm, not only around a single average concentration number. Intermittent VOC emissions need careful review of peaks, airflow changes, solvent compatibility, regeneration timing, and downstream oxidation requirements. If your plant has batch production, start-stop operation, or changing VOC loads, contact us to discuss whether a Cylindrical Zeolite Rotor With CO/RTO/RCO can support a stable integrated treatment route.
It can adsorb VOCs during emission peaks and release them through controlled desorption. This helps reduce sudden load changes before downstream treatment.
Useful data includes peak and average VOC concentration, airflow range, solvent composition, temperature, humidity, operating cycle, production rhythm, and emission standard.
Yes, if the system is designed around the actual operating rhythm. Rotor capacity, regeneration timing, airflow control, and downstream equipment must match the production cycle.
The decision depends on VOC concentration, solvent type, catalyst suitability, temperature, airflow, and energy strategy. Eco Nova Group can review these conditions and suggest the suitable integrated route.
