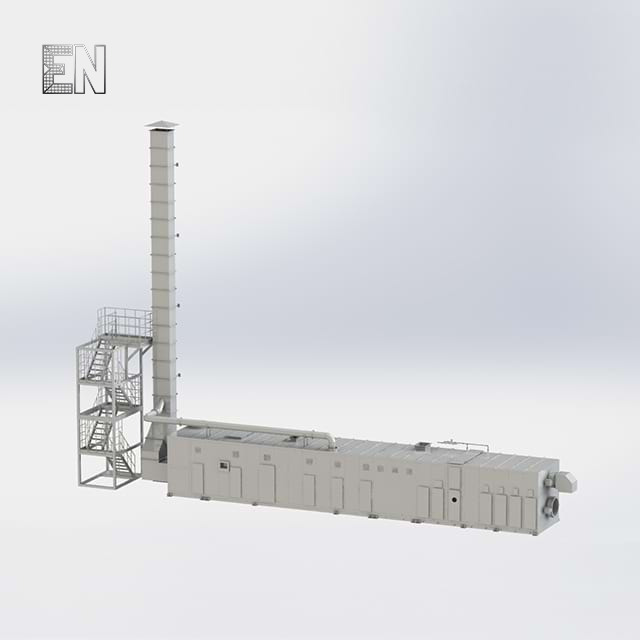

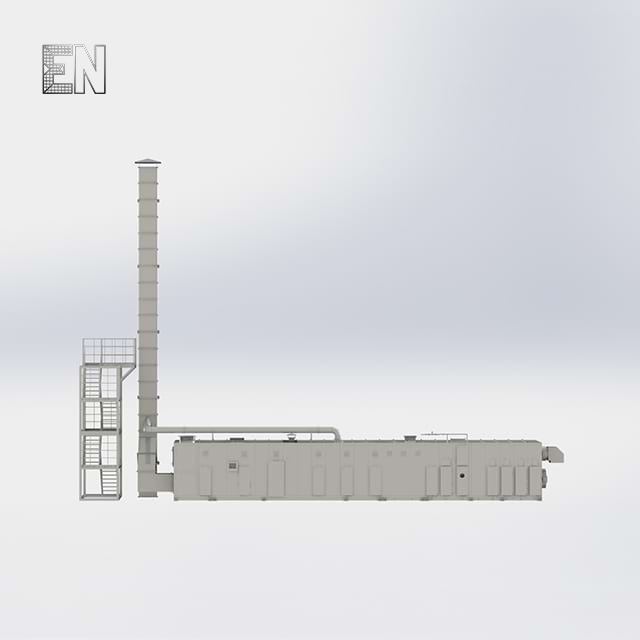

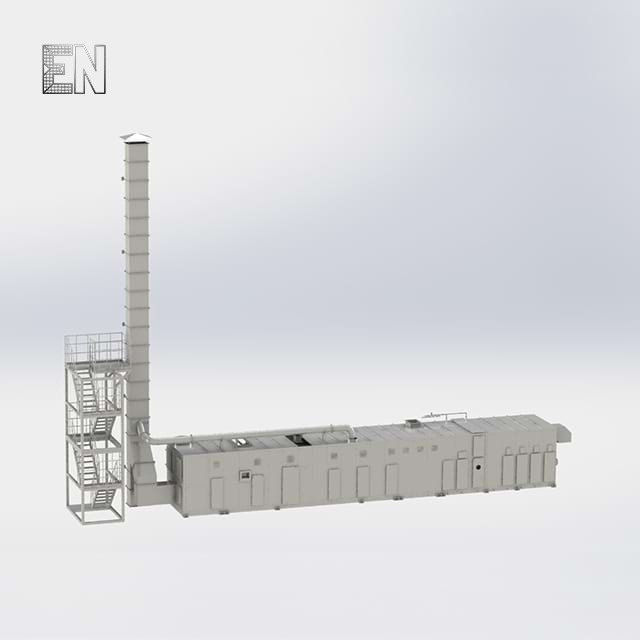

VOC Concentrator With CO Integrated Machine

VOC Concentrator with CO integrated machine is an efficient organic waste gas treatment system. It is mainly used to treat large air volume and low concentration VOCs. The equipment combines adsorption concentration technology and catalytic combustion technology. Through adsorption, desorption, catalytic combustion and other processes, it converts low-concentration waste gas into high-concentration gas and treats it efficiently, ultimately achieving purified emissions.

Availability:

Quantity:



Inquire Add to Basket

Waste water treatment VOC Concentrator Waste Gas Treatment Chemical reactor Fine Chemical EPC

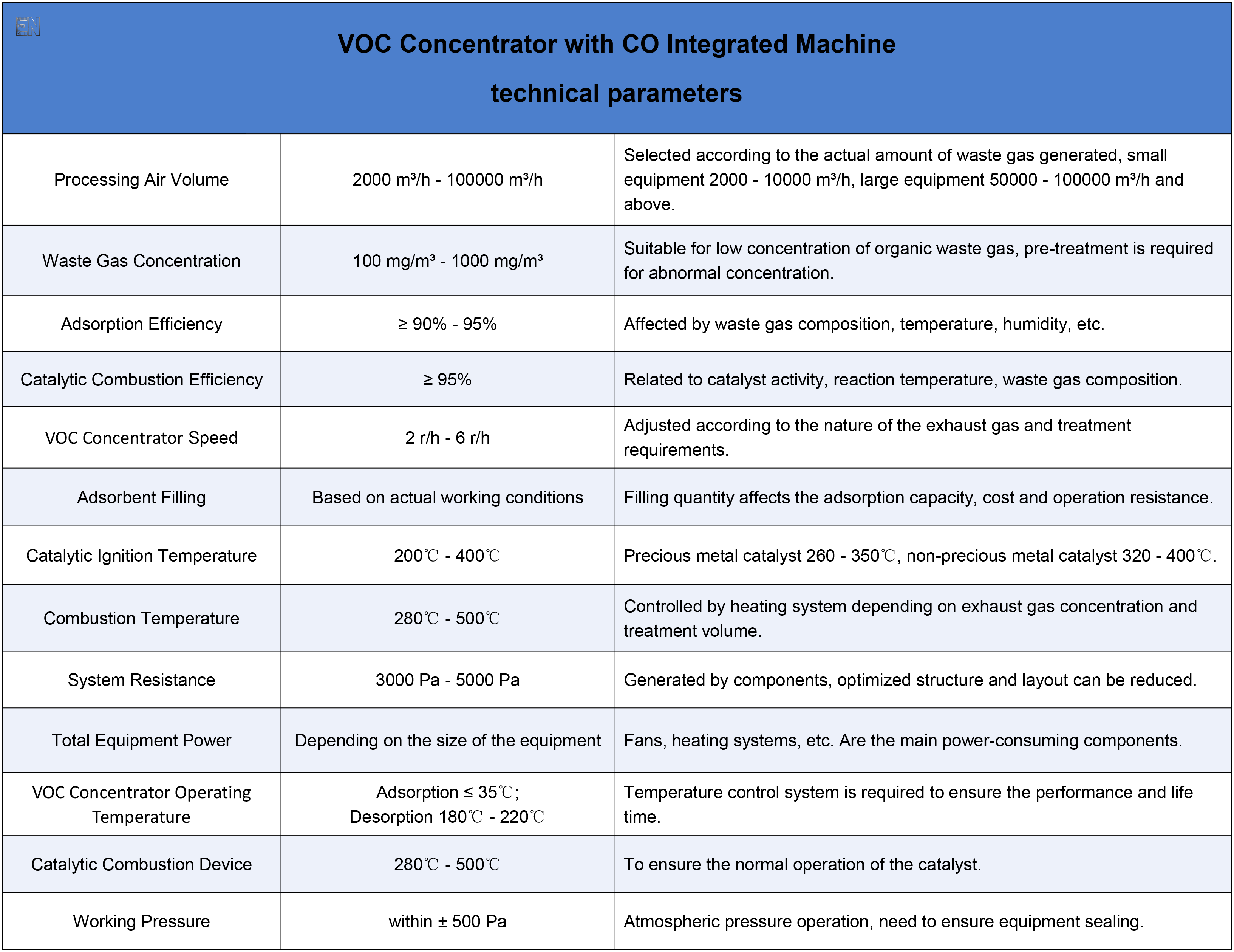

Technical Parameters

Working Principle

Product Advantage

Application

FAQ

图片1 (2)

Working Principle

1. Pretreatment system
VOCs with large air volume and low concentration first pass through the pre-filter to remove large molecular particles such as dust in the exhaust gas, so that the dust concentration of the exhaust gas is less than 5mg/m³, and the filtration efficiency is greater than 99%.

2. VOCs concentrator adsorption system
The pretreated gas enters the wheel adsorption area through the fan, and the organic molecules are adsorbed by the zeolite, and the purified gas is directly discharged. The VOCs concentrator rotates continuously, and a small amount of hot air (temperature 200℃-230℃) is used to blow the saturated zeolite to the desorption area, and the adsorbed VOCs are desorbed by high-temperature air to regenerate the zeolite.

3. CO system
The high-concentration VOCs generated by desorption enter the CO system, and under the action of the catalyst, they react with O2 to produce CO2 and H2O, achieving harmless treatment.

Product Features

In complex exhaust gas components, it preferentially adsorbs target pollutants, improves treatment efficiency, and extends the service life of zeolite.

Strong adsorption selectivity
Under normal maintenance, the minimum service life of the VOCs concentrator is up to 5 years, saving consumables costs. The CO system can recover heat energy and reduce fuel consumption.

Low operation and maintenance costs
Through alternating partitions, it can achieve 24-hour continuous operation, which is suitable for exhaust gas scenarios with large air volume and continuous emission.

Continuous operation of adsorption and desorption
Provide full system technical support and services including combined processes to ensure efficient and coordinated work of the entire system.

Provide technical support and services

Application

All kinds of paint spraying workshop

Automobile manufacturing, hardware furniture, shipbuilding, bicycle manufacturing, metal products, etc.

Various printing

workshops

Intaglio printing, building decoration materials printing, packaging printing, etc.

Other

Various synthetic resins, rubber products, semiconductors, aluminium profiles, coating, etc.

FAQs

Decreased efficiency of organic waste gas treatment

(1) The adsorbent is close to saturation: perform desorption and regeneration operation on the VOCs concentrator (when it contains high-boiling-point substances). If the zeolite adsorbent has been used for too long, the adsorbent should be replaced.
(2) Reduced catalyst activity: Check the catalyst. If the catalyst is aged or poisoned, the catalyst should be activated or replaced.
(3) Improper operating parameter settings: At this time, the exhaust gas composition and concentration should be analyzed and the equipment operating parameters should be adjusted, such as appropriately increasing the catalytic combustion temperature or increasing the air volume.
Unstable temperature of CO device

(1) Component failure: Check the heating element, temperature sensor, etc., and repair, calibrate, and replace damaged components.
(2) Exhaust gas flow rate fluctuates too much: Stabilize the exhaust gas flow rate and check the exhaust gas delivery system.
(3) Decreased efficiency of the heat exchanger: Check the heat exchanger, clean the internal dust or blockage, and improve the heat exchange efficiency.
Exhaust gas emissions exceed the standard

(1) Incomplete adsorption: Check the adsorption effect of the VOCs concentrator and replace the adsorbent if necessary.
(2) Insufficient catalytic combustion: Check the temperature and catalyst activity of the catalytic combustion device, and adjust the operating parameters to ensure sufficient combustion.
(3) Equipment leakage: Check the sealing of each component of the equipment and repair the leakage point.
