A test report may show VOC concentration, airflow, and solvent names, but these numbers do not automatically explain which treatment route is realistic. Before discussing equipment, a plant should first complete voc concentration calculation so the data can support real system selection. Eco Nova Group, a VOC treatment equipment supplier based in Dezhou, Shandong Province, helps industrial plants understand emission data and match it with practical VOC Concentrator and Zeolite Rotor solutions.
VOC calculation should begin with site data, not only formulas. Many projects start with a simple request such as “we need VOC exhaust gas treatment,” but the real design depends on airflow, concentration range, solvent type, production hours, and emission points.
A useful calculation connects three questions: how much exhaust gas is produced, how much VOC is inside it, and how the production line operates. Once these points are clear, it becomes easier to judge whether the project needs direct oxidation, adsorption, concentration, or an integrated route.
Airflow is the first boundary of equipment design. It affects duct size, fan selection, adsorption area, pressure drop, and downstream treatment capacity. A 20,000 Nm³/h exhaust line and a 100,000 Nm³/h workshop ventilation system would require different treatment approaches, even if the VOC concentration seems close.
Operating hours are also important. A line running eight hours per day creates a different daily VOC load from a line running continuously. If production is intermittent, both normal values and peak values should be recorded. A short cleaning or coating process may create a sudden concentration spike that the average value cannot show.
Emission points should be listed separately at the beginning. Coating booths, drying ovens, mixing rooms, and storage areas may have different airflow, temperature, humidity, and solvent conditions. If they are collected into one system, these differences must be considered during calculation.
VOC concentration may appear as ppm, mg/m³, or total VOC. These units should not be compared directly without conversion. For example, 100 ppm does not equal 100 mg/m³. The result depends on molecular weight, temperature, and pressure.
Mixed solvents also need attention. Toluene, xylene, ethyl acetate, acetone, and alcohols have different molecular weights and different adsorption behavior. Treating all VOCs as one vague number may be acceptable for rough communication, but it is not enough for equipment selection.
Before comparing treatment options, all concentration data should be organized into consistent units. If possible, the plant should provide test reports, solvent lists, material safety data sheets, and production descriptions. This makes the later calculation much more useful.
After collecting the basic data, the next step is to turn it into numbers that can guide system selection. For industrial VOC treatment, two values are especially important: concentration and mass loading. Concentration shows how diluted the exhaust is. Mass loading shows how much pollutant the system must remove over time.
Many gas reports use ppm, but equipment design often needs mg/m³ because it connects more directly with pollutant mass and emission limits. A commonly used simplified formula is:
mg/m³ = ppm × molecular weight ÷ 22.4
This formula is generally used around 25°C and 1 atm. The important point is that molecular weight changes the result. The same ppm value can produce different mg/m³ values for different solvents.
For a single solvent, the calculation is more direct. For mixed solvents, the calculation may use the main components or laboratory total VOC data. If the report does not list individual compounds, solvent consumption and production process information can help engineers estimate the treatment direction more accurately.
Concentration alone may mislead the project team. A low concentration in a very large airflow can still create a high total VOC load. A higher concentration in a small airflow may be easier to treat.
A simple way to estimate VOC load is:
VOC load = airflow × VOC concentration
If airflow is measured in Nm³/h and concentration is converted into g/Nm³, the result can be expressed as kg/h. This value helps show how much VOC enters the system every hour.
For large-airflow, low-concentration exhaust, direct oxidation may require heating too much air. In this situation, a well-designed VOC Concentrator can help capture VOCs from a large gas stream and release them into a smaller concentrated stream for downstream treatment.
Data to collect | Why it matters | Example note |
Airflow rate | Defines total exhaust volume | Nm³/h or CFM |
VOC concentration | Shows dilution level | ppm or mg/m³ |
Molecular weight | Needed for unit conversion | Toluene, acetone, xylene, etc. |
Operating hours | Affects daily VOC load | Continuous or intermittent |
Temperature and humidity | Influence adsorption stability | Important for zeolite systems |
After VOC concentration and mass loading are calculated, the next question is how these numbers affect system design. The goal is not only to know whether the concentration is high or low, but to understand whether the exhaust should be treated directly or concentrated first.
High airflow with low VOC concentration is common in coating, printing, packaging, electronics, and material production. The exhaust may contain a large amount of clean carrier air with a relatively small amount of VOCs. If the whole airflow is sent directly to oxidation, the system may become large and energy-intensive.
A concentration system changes this situation. It adsorbs VOCs from the large airflow and uses a smaller desorption stream to send concentrated VOCs to the final treatment unit. This can reduce downstream equipment load and improve the overall energy balance.

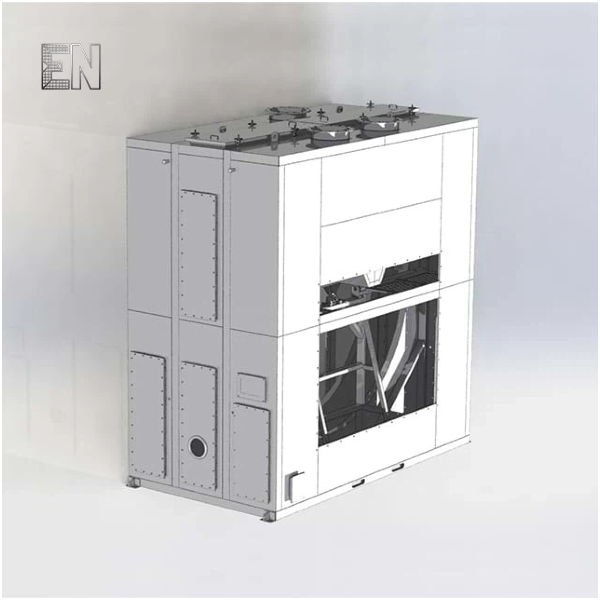

When calculation shows large air volume and low-to-medium VOC concentration, reviewing a VOC Concentrator system becomes a practical next step.
Concentration ratio describes how much the system reduces the air volume while increasing VOC concentration in the desorption stream. A higher ratio may sound attractive, but it must match solvent type, safety limits, desorption temperature, and downstream equipment capacity.

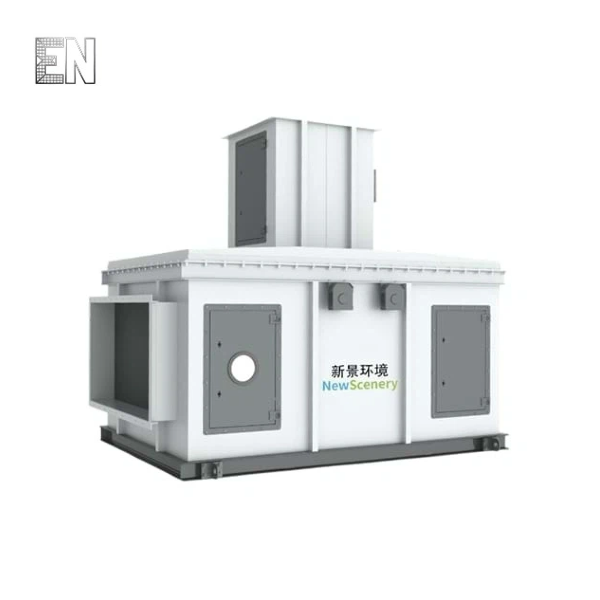

The rotor is the core component that makes concentration possible. It must adsorb VOCs efficiently and release them during regeneration. A stable Zeolite Rotor helps support repeated adsorption and desorption, while also maintaining proper airflow and pressure drop.
The calculated inlet VOC concentration helps engineers estimate rotor load, desorption air volume, and downstream treatment demand. It also helps avoid overdesign or underdesign.
VOC calculation is not difficult, but several mistakes can lead to the wrong equipment direction. The most common problem is using incomplete data.
Average concentration helps estimate daily VOC load and operating cost. Peak concentration helps check system capacity and safety. Both are useful, but they should not be mixed together.
For example, a production line may run steadily most of the day but produce a high VOC peak during cleaning, solvent replacement, or drying. If the system is designed only according to the average value, it may struggle during peak conditions. If it is designed only according to the peak value, it may become unnecessarily large for normal operation.
A total VOC value does not explain everything. Two gas streams may have the same total VOC concentration but contain very different solvents. Their adsorption performance, desorption temperature, heat release, and safety requirements may not be the same.
Solvent composition affects rotor selection, pretreatment needs, and downstream treatment route. For this reason, the plant should provide the main VOC components whenever possible, not only one total number.
VOC treatment design must consider temperature, humidity, flammability, concentration fluctuation, and process changes. Even if average concentration is low, peak values and abnormal conditions should be reviewed.
For concentration systems, safety is especially important because the system intentionally creates a smaller stream with higher VOC concentration. Concentration ratio, desorption temperature, airflow control, and monitoring should all be considered during design.
A VOC Concentrator route is often worth reviewing when the exhaust has high airflow, low-to-medium VOC concentration, suitable solvent composition, and relatively stable operating conditions. In this type of project, the challenge is not only removing VOCs, but also reducing the amount of air sent to final treatment.
Eco Nova Group designs VOC treatment solutions based on this project logic. Instead of looking at one test value alone, the calculation should be read together with airflow, solvent type, production rhythm, temperature, humidity, and emission targets.
This approach helps plants avoid vague equipment selection. It also helps the project team understand why concentration before oxidation may reduce downstream load, fuel demand, and system size in the right conditions.
For Eco Nova Group, voc concentration calculation is the foundation of responsible VOC treatment design. When airflow, VOC concentration, solvent composition, operating hours, and peak conditions are clear, the project team can judge whether adsorption, direct oxidation, concentration, or an integrated route is more suitable. If your plant is reviewing emission data and wants to know whether a VOC Concentrator solution can reduce downstream treatment load, contact us to discuss your project.
It helps show whether the exhaust is mainly a concentration problem, an airflow problem, or a total pollutant load problem. This makes equipment selection more accurate.
Both units can be useful, but mg/m³ is often more practical for treatment design. If the report uses ppm, it should be converted with the correct molecular weight.
Airflow decides how much gas the system must process every hour. Low VOC concentration with very high airflow can still create a large treatment burden.
Prepare airflow rate, VOC concentration, solvent composition, operating hours, temperature, humidity, emission points, and required emission standards. This helps Eco Nova Group review the right VOC treatment route.
