MBR Integrated Sewage Treatment Equipment

MBR integrated sewage treatment equipment is a new type of equipment that combines biological treatment with membrane separation technology. The device achieves deep purification of sewage through the solid-liquid separation of membrane components to obtain reclaimed water that can be used directly. At the same time, it can maintain a high concentration of microorganisms in the biological pool, providing the possibility for deep phosphorus and nitrogen removal by nitrifying bacteria.

Availability:

Quantity:



Inquire Add to Basket

Waste water treatment VOC Concentrator Waste Gas Treatment Chemical reactor Fine Chemical EPC

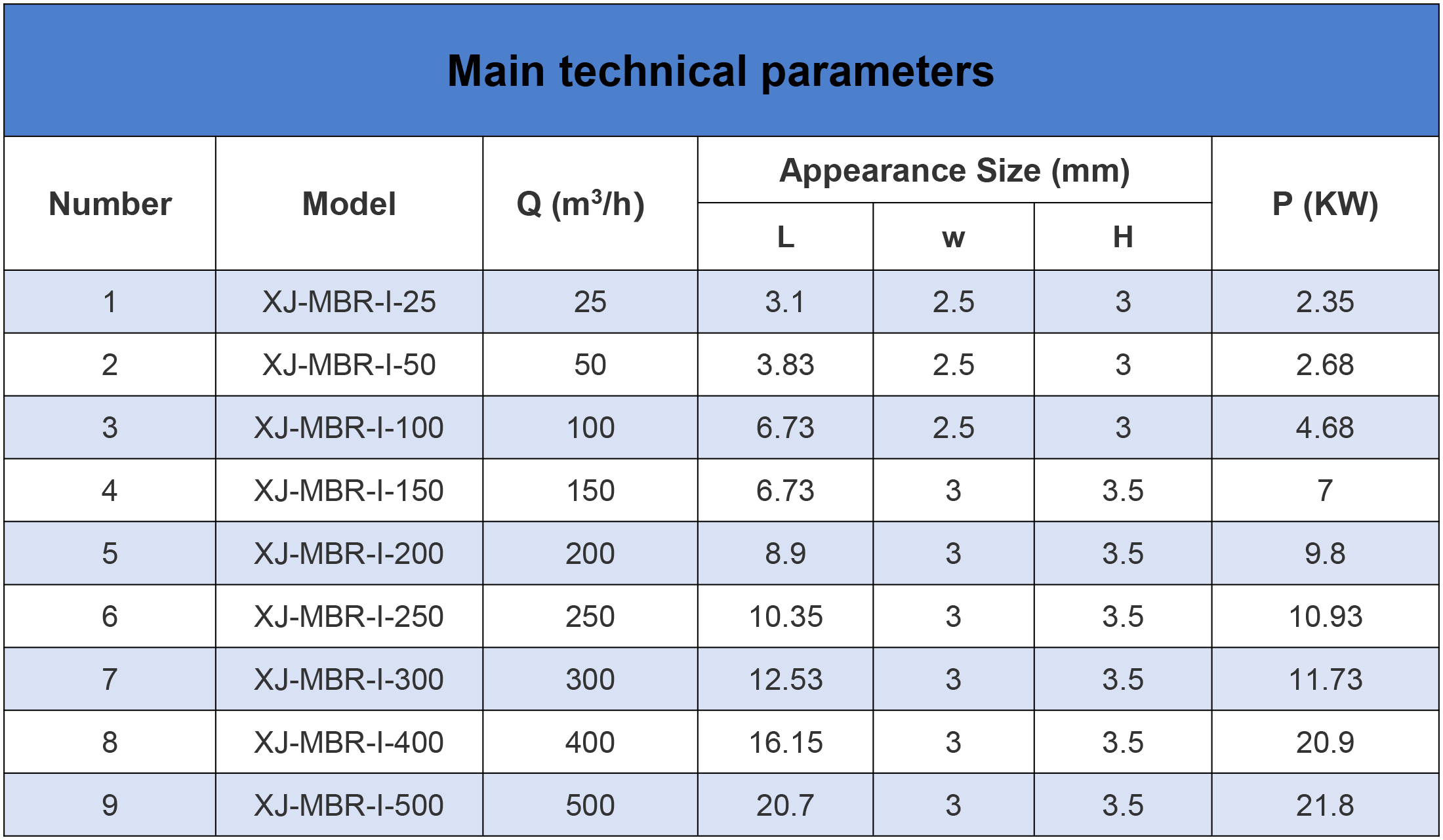

Technical Parameters

Working Principle

Product Advantage

Application

FAQ

Working Principle

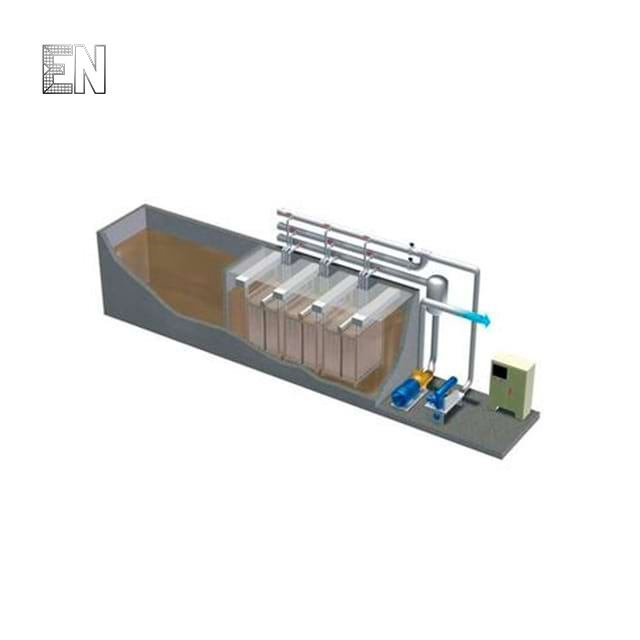

After the sewage enters the biological reaction zone, the microorganisms in the activated sludge decompose organic matter through aerobic metabolism, remove pollutants such as COD and BOD, and simultaneously achieve nitrification and phosphorus removal and denitrification. The treated mixed liquid passes through a microfiltration or ultrafiltration membrane to intercept suspended matter, bacteria and macromolecular organic matter to achieve solid-liquid separation. The sludge intercepted by the membrane is returned to the biological reaction zone to maintain a high concentration of sludge, and the remaining sludge is discharged regularly.

Product Features

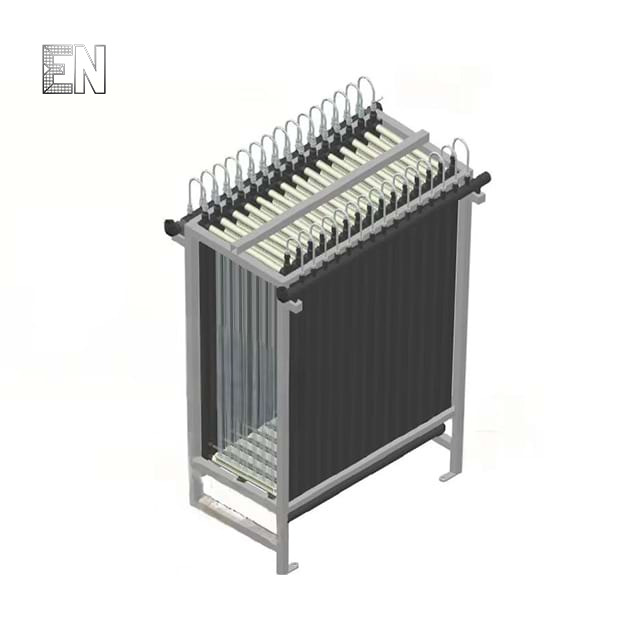

The membrane module effectively intercepts suspended solids, bacteria and macromolecular organic matter, and the effluent can be directly reused or discharged.

Stable effluent quality
The mechanical interception of the membrane module avoids the loss of microorganisms, can maintain a high sludge concentration, increase the volume load, and reduce the sludge load.

Strong impact load resistance
Due to the long SRT, the bioreactor also plays the role of a sludge nitrification tank, which significantly reduces the sludge production. The residual sludge production is low, the sludge load is low, and the sludge stability is good, without the risk of expansion.

Low sludge production
The biological reactor and the membrane separation unit are integrated into one, eliminating the traditional secondary sedimentation tank and reducing the floor space.

Integrated design
The modular design of the reactor realizes the separate control of the reactor SRT and HRT, so it can be controlled flexibly, stably and automatically.

Convenient operation and management

Application

Domestic sewage

Sewage treatment in residential areas, rural communities, towns, etc.; domestic sewage reuse in public buildings such as hospitals, schools, and hotels.

Industrial wastewater

Organic wastewater treatment in food processing (canned food, beverages, slaughtering), chemical, pharmaceutical, textile printing and dyeing, electroplating and other industries.

Recycled water reuse

Industrial circulating cooling water, boiler feed water, green irrigation, car washing water, etc.

FAQs

Causes and solutions for fluctuations in effluent quality

(1) Microbial activity is impacted, such as toxic substances and temperature changes. It is recommended to monitor the influent water quality to ensure water quality stability;
(2) For reasons such as membrane damage, the integrity of the membrane components should be checked in time, and emergency carbon sources or nutrients should be added when necessary.
Sludge expansion or foaming

When the influent water quality changes, such as low sewage carbon-nitrogen ratio, or excessive surfactants, grease, etc. in the influent, sludge expansion or large amounts of foam will occur. It is recommended to add defoaming agents and adjust the ratio of nutrient sources in the influent (supplement phosphorus sources).
Membrane component pollution and blockage

When the sludge concentration in the pool is too high and dissolved organic matter accumulates, it will cause membrane pollution or blockage. It is recommended to perform chemical cleaning regularly and optimize the sludge concentration.
