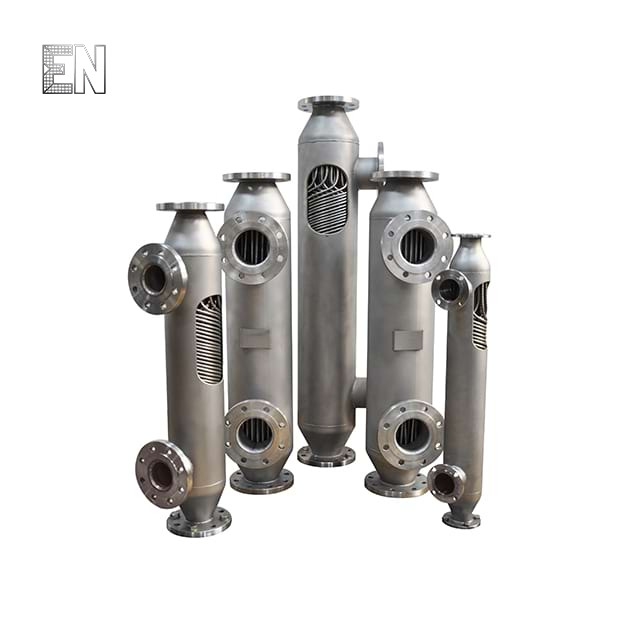

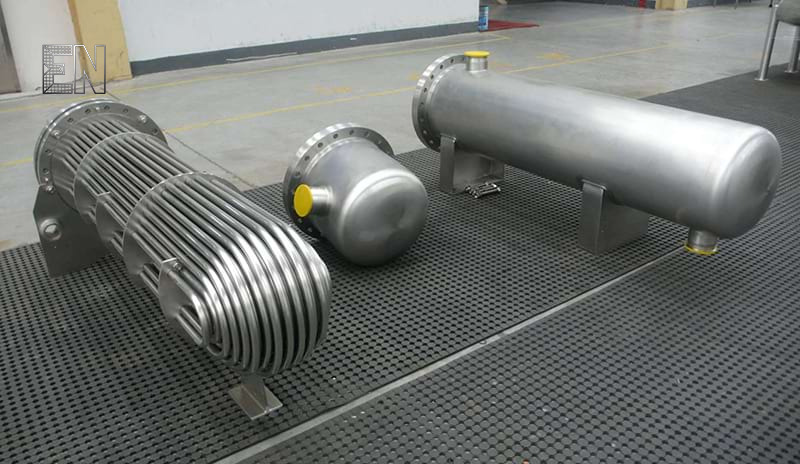

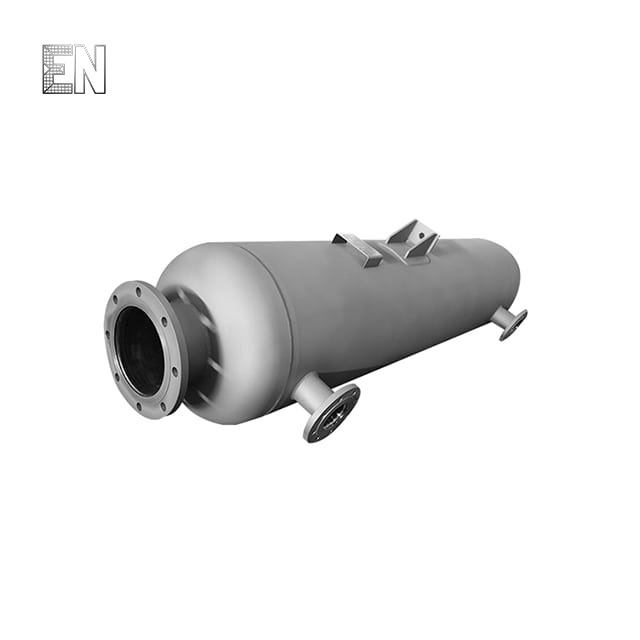

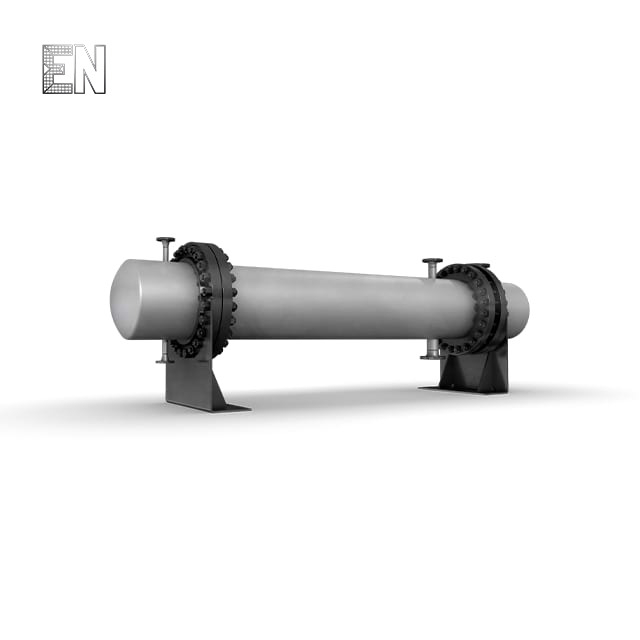

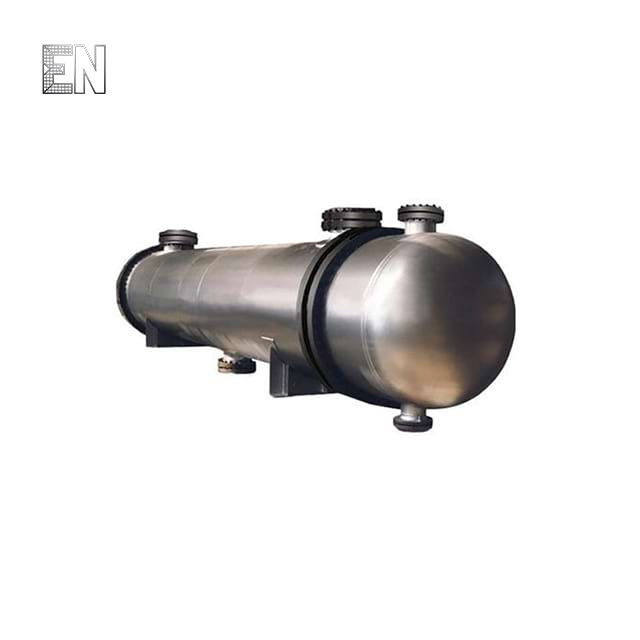

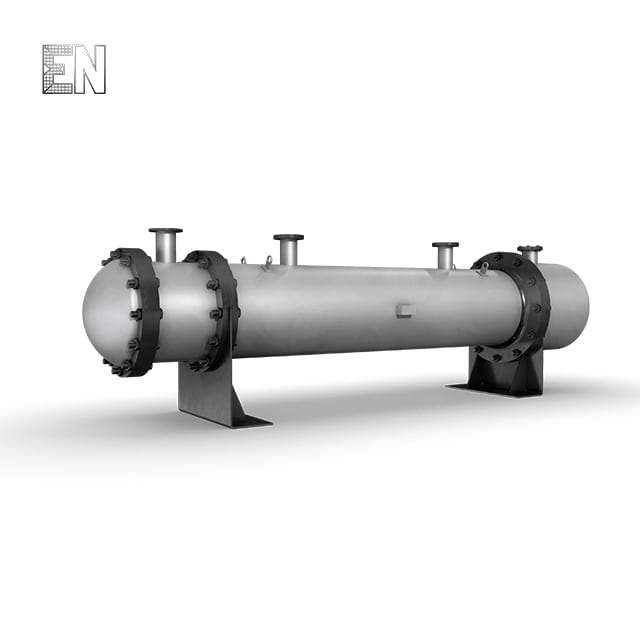

Tube Heat Exchanger

Tube heat exchanger is equipment used to achieve heat exchange and are widely used in chemical, petroleum, pharmaceutical, food processing and other industries. Through different structural designs, it enables two or more fluids to transfer heat without direct contact, meeting the needs of heating, cooling, evaporation, condensation and other processes. Choosing high-quality heat exchangers can not only improve production efficiency, but also reduce energy consumption and maintenance costs.

Availability:

Quantity:



Inquire Add to Basket

Waste water treatment VOC Concentrator Waste Gas Treatment Chemical reactor Fine Chemical EPC

Working Principle

Product Advantage

Application

FAQ

Working Principle

The heat exchanger effectively accomplishes the transfer of heat via two fundamental mechanisms: convection and conduction.

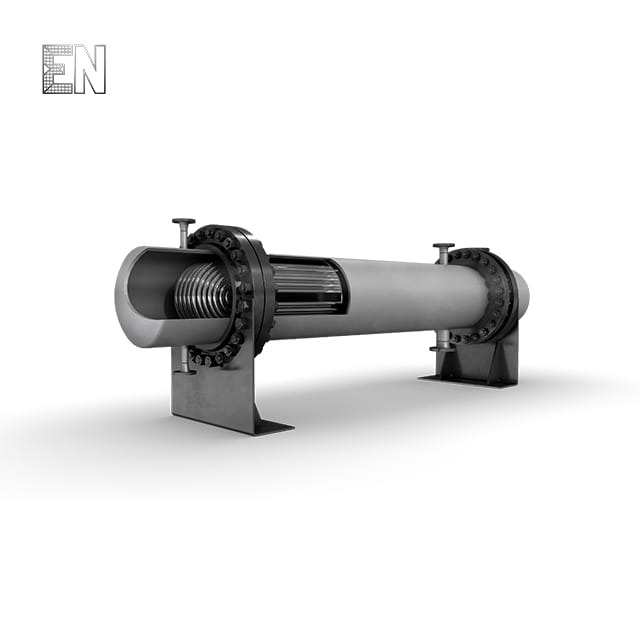

Specifically, the hot fluid and the cold fluid enter the heat exchanger separately, with the hot fluid making its way into the tube side and the cold fluid entering the shell side. These two fluids then engage in the crucial heat - exchange operation through the tube wall. As a result of this interaction, the temperature of the cold fluid gradually rises as it absorbs heat from the hot fluid, while simultaneously, the temperature of the hot fluid drops as it loses heat to the cold fluid.

After this heat - exchange process occurs, the two fluids flow out from their respective outlets of the heat exchanger. In this way, the entire heat - exchange process is successfully completed, facilitating the transfer of thermal energy from the hot fluid to the cold fluid.

Characteristic Description

In the era of energy conservation and environmental protection, industrial processes demand reliable heat exchange solutions that balance efficiency, safety, and cost-effectiveness. The Tube Heat Exchanger stands out as a core environmental equipment, enabling non-contact heat transfer between multiple fluids to support heating, cooling, evaporation, and condensation in diverse industrial sectors. Its optimized design aligns with the growing need for low-energy-consumption equipment in VOCs waste treatment, wastewater processing, and other environmental engineering projects.

High-Efficiency Heat Transfer

Utilizes advanced convection and conduction principles, maximizing heat exchange efficiency while minimizing energy loss. The tube wall acts as a stable medium, ensuring rapid temperature adjustment between hot and cold fluids.
Versatile Adaptability

Compatible with various fluid types (liquids, gases) and temperature ranges, adapting to the dynamic needs of different industrial processes without performance degradation.
Superior Safety & Economy

Equipped with leakage and explosion prevention mechanisms to meet strict industrial safety standards. It recycles waste heat effectively, cutting down production costs and carbon emissions.

Product Features

Through optimized design, the heat transfer efficiency can be improved and energy loss can be reduced.

Efficient heat transfer
A large amount of heat exchange can be achieved in a limited space.

Compact structure
It can be used for various fluids and temperature ranges.

Wide range of applications
It can be manually or automatically controlled as needed.

Convenient operation
It is designed with safety protection measures to prevent accidents such as leakage and explosion.

High safety
It can recycle waste heat and reduce production costs.

Good economy

Application

Chemical industry

Used for heating, cooling, evaporation, condensation and other processes.

Petroleum industry

Used for crude oil distillation, catalytic cracking and other processes.

Power industry

Used for boiler feed water heating, steam condensation and other processes.

Food industry

Used for milk pasteurization, juice concentration and other processes.

Refrigeration and air conditioning

Used for refrigerant evaporation and condensation processes.

Other fields

Car radiators, solar water heaters, etc.

FAQ

What fluids can the Tube Heat Exchanger handle?

It is compatible with most industrial fluids, including water, oil, chemicals, and gases. For highly corrosive media, we offer customized stainless steel or alloy materials to ensure durability.

How often does the equipment require maintenance?

Routine maintenance (cleaning tube walls, checking seals) is recommended every 6-12 months, depending on usage intensity. The compact design and accessible components simplify maintenance, reducing downtime.

Can it be integrated into existing production lines?

Yes. The exchanger’s modular design and customizable dimensions allow seamless integration with existing systems. Our technical team provides on-site installation guidance to ensure compatibility.

Does it support waste heat recycling?

Absolutely. It efficiently recovers waste heat from high-temperature fluids (e.g., industrial exhaust, wastewater) and transfers it to cold fluids, reducing reliance on external energy sources and lowering production costs.
