Large exhaust volume can make a VOC project expensive before the treatment system even starts removing pollutants. When VOC concentration is low but airflow is high, the real challenge is how much air must be moved, heated, filtered, and finally treated. That is why proper sizing matters before a plant confirms a VOC Concentrator. Eco Nova Group, located in Dezhou, Shandong Province, supplies VOC treatment equipment for industrial plants that need practical solutions for high-airflow low-concentration exhaust.
A VOC concentrator is not sized only by looking at one concentration value. The full exhaust profile must be understood first. This includes normal airflow, peak airflow, VOC concentration range, solvent composition, temperature, humidity, operating hours, and process changes.
Many projects begin with only one number, such as “50,000 Nm³/h exhaust gas” or “VOC concentration is 200 mg/m³.” These numbers are useful, but they are not enough by themselves. A sizing proposal should explain how much gas enters the system, how much pollutant is carried in that gas, and whether the exhaust conditions stay stable during production.
Air volume decides the basic scale of the system. It affects the size of the adsorption zone, the rotor face area, ducting, fan capacity, pressure drop, and installation layout. A system designed for 20,000 Nm³/h cannot simply be stretched into a 100,000 Nm³/h project without changing the whole design logic.
For high-airflow projects, pressure drop becomes especially important. If the equipment is not sized correctly, the fan may need more power, airflow may become unstable, or the plant may fail to collect exhaust effectively from the source. A properly sized concentrator should support stable gas flow while giving VOC molecules enough contact time with the adsorption material.
Peak airflow should also be checked. Some plants provide only average airflow, but real production may change during different shifts, product types, or ventilation modes. If peak airflow is ignored, the system may perform well during normal operation but lose efficiency during high-load periods.
VOC concentration tells how much pollutant is carried in the exhaust. For a concentrator system, this value affects the adsorption load and the amount of VOC that will later be desorbed into a smaller air stream.
The important point is that low concentration does not always mean a small project. A large airflow with low VOC concentration can still create a considerable pollutant load. For example, dilute exhaust from coating, printing, packaging, or electronics production may contain a large amount of carrier air. If all this air is sent directly to oxidation, the downstream equipment may become oversized and energy-intensive.

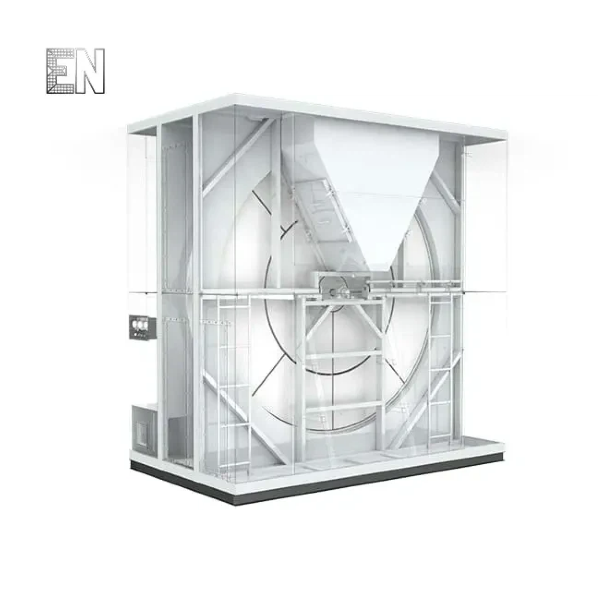

This is where a VOC Concentrator becomes useful. It captures VOCs from the large airflow and releases them into a smaller, richer stream. The final oxidizer then treats less air, which can reduce equipment scale and energy pressure when the project conditions are suitable.
Concentration ratio is one of the key points in VOC concentrator sizing. It describes how much the original exhaust volume is reduced before the VOCs are sent to the downstream treatment unit. For example, a system may reduce a large exhaust flow into a much smaller desorption flow with a higher VOC concentration.
However, the concentration ratio should not be selected only because it looks impressive. A higher ratio is not always better. The right ratio should match the solvent type, safety limits, desorption temperature, rotor capacity, and oxidizer design.
A high concentration ratio can reduce the air volume entering the downstream oxidizer, but it also increases the VOC concentration in the desorption stream. If this is not controlled properly, it may create safety concerns or unstable operating conditions.
Different VOCs also behave differently. Aromatics, ketones, esters, alcohols, and mixed solvents do not have the same adsorption and desorption characteristics. Some compounds are easier to adsorb, while others require more careful temperature and material review. The concentration ratio must be designed around the actual gas composition, not only around a standard number.
Desorption temperature is another factor. The system must provide enough heat to regenerate the adsorption material, but excessive temperature may waste energy or affect system stability. Correct sizing finds a balance between adsorption efficiency, regeneration performance, safety, and operating cost.
A VOC concentrator can reduce the burden on the back-end CO/RTO by sending a smaller concentrated stream instead of the full exhaust volume. This is especially valuable for high-airflow low-concentration exhaust, where direct oxidation may require heating too much clean air.
When concentration is done correctly, the CO/RTO can be designed around a more suitable airflow and VOC load. This may help reduce fuel consumption, equipment footprint, and thermal load. It may also make system operation more stable because the downstream equipment receives a more manageable treatment stream.
Sizing factor | What to check | Design impact |
Exhaust flow | Normal and peak flow | Rotor face area and fan sizing |
VOC level | Average and peak concentration | Concentration ratio and oxidizer load |
Solvent type | Aromatics, ketones, esters, alcohols | Adsorption and desorption behavior |
Temperature | Inlet exhaust temperature | Adsorption efficiency and pretreatment |
Dust/oil mist | Particulate and aerosol content | Filtration and rotor protection |
This table is a useful starting point for plants preparing a technical inquiry. It helps the project team move from a general request to a clearer sizing discussion.

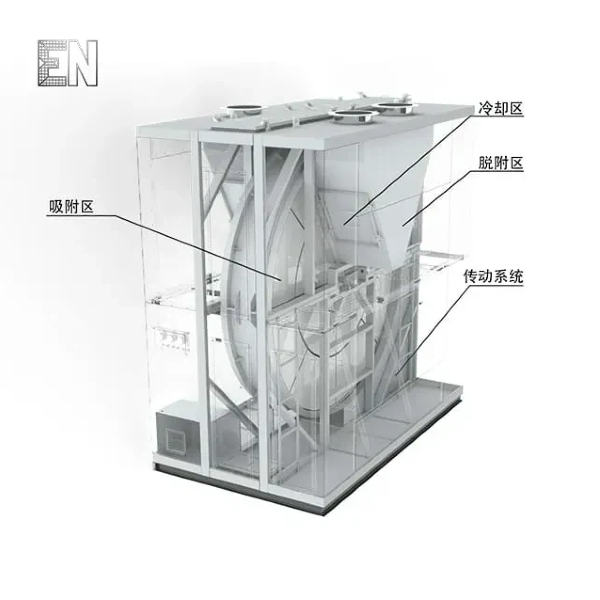

A VOC concentrator works through adsorption and desorption. This means the gas condition directly affects system performance. Even when airflow and concentration look suitable, temperature, humidity, dust, oil mist, and production rhythm can change the sizing result.
Higher inlet temperature can reduce adsorption efficiency because VOC molecules are less easily retained on the adsorbent surface. If the exhaust gas is too hot, cooling or process adjustment must be needed before the gas enters the concentrator.
Humidity should also be reviewed, especially when the exhaust contains water vapor. Moisture may compete with VOCs on the adsorption material or affect the stability of the system. Some zeolite-based materials have better moisture resistance than other adsorbents, but humidity still needs to be included in the sizing discussion.
For this reason, temperature and humidity should not be treated as minor details. They help decide whether pretreatment is needed and how the system should be operated.
Particulates, oil mist, paint mist, and sticky compounds can reduce adsorption efficiency and increase pressure drop. If these pollutants enter the rotor directly, they may block channels, contaminate the adsorption surface, or shorten the service life of the core component.
Filtration is therefore part of sizing, not an optional accessory. The filter grade, maintenance cycle, and pressure drop should match the actual exhaust condition. For coating and spraying lines, paint mist control is especially important. For packaging and printing lines, dust and ink-related residues may need attention.
Good pretreatment protects the rotor and keeps airflow stable. Without it, even a correctly sized concentrator will lose performance after a period of operation.
Many industrial plants do not produce emissions at a perfectly steady rate. Start-stop operation, cleaning cycles, product changes, and batch production can all create sudden VOC peaks. These changes should be considered during sizing.
If the concentrator is sized only according to average load, it may not handle short-term peaks well. If it is sized only according to the highest peak, the system may become larger than necessary. A practical design should compare normal load, peak load, and operating rhythm.
For intermittent production, control strategy becomes important. The system may need to adjust airflow, desorption temperature, or operation mode according to the production condition. This makes early data collection especially valuable.
For some high-airflow low-concentration projects, concentration alone is not the final answer. The concentrated VOC stream still needs reliable destruction. When the plant requires strong thermal oxidation and stable emission control, an integrated RTO layout may be suitable.
A VOC Concentrator With RTO Integrated Machine combines the concentration stage with regenerative thermal oxidation. The concentrator reduces the exhaust volume sent to the final treatment stage, while the RTO destroys the concentrated VOC stream through high-temperature oxidation and heat recovery.
This layout can be useful when the exhaust volume is large, VOC concentration is low to medium, and the plant wants to reduce the energy burden of treating the full airflow directly. The integrated design also helps match the rotor, desorption system, fan, burner, heat recovery section, and control system more closely.
For plants with limited project space or a need for coordinated operation, an integrated system can reduce interface problems between separate units. It also makes the technical proposal easier to review because the front-end concentration and back-end oxidation are considered together.
A good proposal depends on good data. Before asking for a VOC concentrator sizing plan, the plant should prepare the main operating information as clearly as possible.
The most important data includes airflow rate, average and peak VOC concentration, solvent composition, inlet temperature, humidity, dust or oil mist content, operating hours, emission standard, and available installation space. If the plant already has duct drawings or workshop layout information, these are also useful.
Production information should also be included. For example, whether the plant runs continuously or intermittently, whether cleaning processes create short VOC peaks, and whether different products use different solvents. These details help Eco Nova Group review the system more realistically.
A voc concentrator unit should be sized according to real working conditions, not only catalogue capacity. When the project data is complete, engineers can better evaluate rotor size, concentration ratio, desorption airflow, pretreatment needs, oxidizer load, and control strategy.
Preparing this information also shortens communication time. Instead of repeating basic questions, both sides can focus on system route, layout, energy use, and emission performance.
Correct sizing is the difference between a system that only looks suitable on a drawing and a system that operates economically after installation. For high-airflow low-concentration exhaust, Eco Nova Group reviews airflow, VOC concentration, solvent type, temperature, humidity, production rhythm, and downstream treatment needs before recommending a route. If your plant is preparing data for a VOC treatment project, contact us to discuss whether a VOC concentrator system can help reduce treatment load and support stable operation.
Airflow rate, VOC concentration, solvent composition, temperature, humidity, and operating hours are the key data. These values decide the system scale, concentration ratio, and downstream treatment load.
It is often a strong application scenario, especially when direct oxidation would require heating a very large amount of air. Final suitability still depends on solvent type, humidity, dust content, and safety limits.
Peak concentration helps check whether the system can handle short-term emission increases. Average concentration is useful for daily load, but peak values are important for safety and system stability.
A VOC Concentrator can be combined with RTO when the project has large airflow, low-to-medium VOC concentration, and a need for strong thermal destruction. The concentrator reduces airflow before the RTO treats the concentrated VOC stream.
