Clean VOC streams can often be treated more efficiently when the system does not rely only on high-temperature thermal oxidation. When the gas has moderate VOC load, low dust, stable solvent composition, and limited catalyst poison risk, a VOC Concentrator with CO integrated machine can offer a lower-temperature catalytic route. Eco Nova Group, located in Dezhou, Shandong Province, supplies VOC concentration, catalytic oxidation, and catalyst products for industrial plants that want reliable VOC control with better energy use.
Catalytic oxidation works best when the gas stream is suitable for the catalyst. The catalyst helps VOCs react at a lower temperature, but it also needs proper protection. If the exhaust gas carries too much dust, sticky mist, sulfur, halogens, or silicone-containing compounds, the catalytic surface may lose activity faster.
This is why clean VOC streams are important. A clean stream does not mean the gas has no pollutants. It means the VOC components are suitable for catalytic reaction, and the unwanted materials that damage the catalyst are controlled before the gas reaches the oxidation stage.
The catalyst surface is where the oxidation reaction happens. VOC molecules contact the active surface, react with oxygen, and are converted into cleaner discharge gases under controlled temperature. If the surface is blocked or poisoned, the reaction becomes less efficient.
Dust and aerosols may cover the catalyst surface and increase pressure drop. Sulfur compounds, halogen-containing compounds, silicone materials, and some heavy metal components may reduce catalyst activity. Sticky substances can also create deposits that are difficult to remove.
For this reason, gas quality should be checked before confirming a CO system. A plant should provide the main VOC components, solvent usage, temperature, humidity, particulate condition, and process description. These details help engineers judge whether catalytic oxidation is suitable and whether pretreatment is needed.
Pretreatment should be considered part of the whole system, not an extra detail added later. Good filtration and process review help protect the catalytic oxidation stage and keep the system stable.
For example, coating and printing exhaust may contain paint mist, ink particles, or adhesive residue. Chemical and material production exhaust may contain mixed organic vapors or trace contaminants. If these materials enter the catalyst bed without control, they may reduce service life and increase maintenance cost.
A practical design should review filters, mist removal, temperature control, and gas mixing before the CO unit. When pretreatment is done properly, the catalytic stage can work with cleaner gas, lower pressure fluctuation, and better long-term performance.

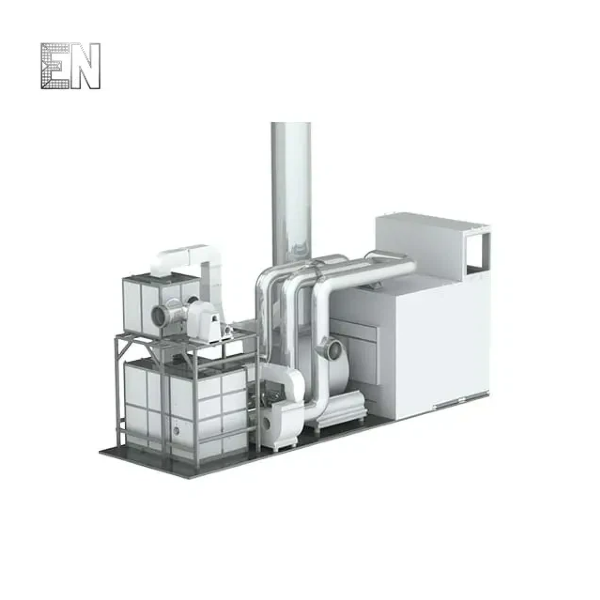

A CO(Catalytic Oxidizer) uses catalyst-assisted oxidation to treat VOCs at a lower reaction temperature than thermal-only oxidation. This is the main reason many plants consider catalytic treatment for clean and controllable VOC streams.
Lower operating temperature can reduce auxiliary fuel demand. It may also reduce thermal stress on equipment and support more stable operation when the gas condition is suitable. For plants running long production hours, even a moderate reduction in heating demand can become meaningful over time.
However, lower temperature is not only a result of the equipment name. It depends on catalyst quality, VOC composition, inlet concentration, airflow, and pretreatment. If the gas is not suitable for the catalyst, the system may need higher temperature or more maintenance, which reduces the expected advantage.
CO treatment is therefore most valuable when the project is reviewed as a whole. The plant should not only ask whether catalytic oxidation can remove VOCs. It should also ask whether the exhaust stream is clean enough, whether the VOC load is stable, and whether a concentrator can improve the inlet condition before the catalytic stage.

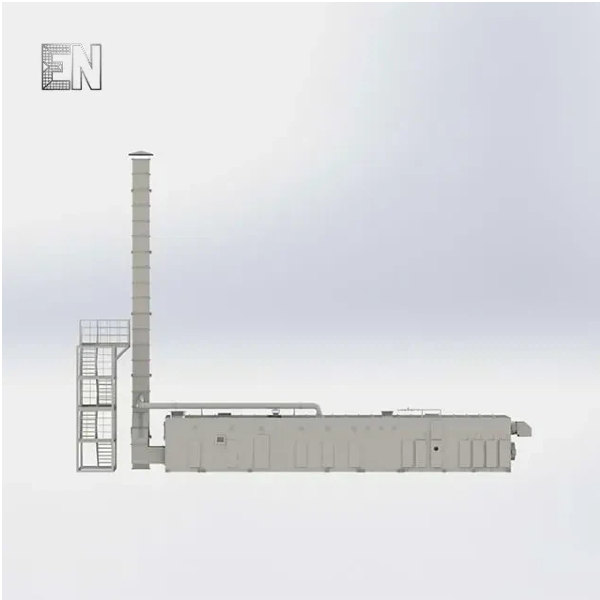

A VOC concentrator improves the CO route by reducing the original air volume before catalytic treatment. This is especially useful when the plant has large airflow but the VOC concentration is not high enough to make direct treatment economical.
Instead of sending the entire production exhaust into the catalytic oxidizer, the concentrator captures VOCs from the large airflow and releases them into a smaller stream. This allows the CO unit to treat a more concentrated flow.
Large airflow often carries a lot of clean carrier air. If all of that air goes directly into the CO unit, the catalytic oxidizer must be sized for the full flow. This can increase equipment size, fan demand, heating load, and layout pressure.
The concentrator handles the airflow challenge first. It adsorbs VOCs from the large exhaust stream and then uses a smaller desorption airflow to carry the captured VOCs to the CO unit. The catalytic stage receives less air and more VOC mass per unit volume.
This helps the CO unit operate under more practical conditions. It also supports the goal of lower-temperature treatment because the system is not wasting as much energy on unnecessary air.
A smaller concentrated stream can simplify the catalytic oxidation stage. The catalytic bed, heating section, fan, ducting, and control system can be designed around the actual treatment stream rather than the full workshop exhaust.
This does not mean the system should be undersized. The concentrator output and CO capacity must match carefully. If the concentrated stream is too strong or too variable, the catalytic unit may face temperature fluctuation. If the stream is too dilute, the energy advantage may not be clear.
Clean-stream condition | Why it supports CO treatment | Engineering note |
Low dust | Protects catalyst surface | Add proper filtration |
Stable solvent mix | Easier temperature control | Confirm VOC composition |
Low catalyst poison risk | Longer catalyst life | Review sulfur, halogen, and silicon |
Moderate VOC load | Better catalytic efficiency | Match with concentrator output |
This table shows that CO treatment is not only about lower temperature. It depends on whether the gas stream can protect the catalyst and keep the catalytic reaction stable.
The catalyst decides how well the CO system can achieve lower-temperature oxidation. It affects reaction activity, conversion efficiency, operating temperature, pressure drop, and service life. For this reason, catalyst selection should be discussed early in the project.

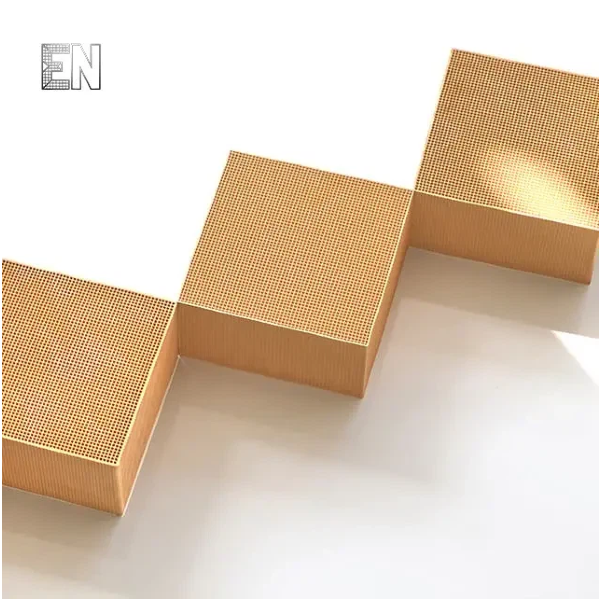

A VOCs Precious Metal Honeycomb Ceramic Catalyst supports VOC oxidation by providing active sites for the reaction. The honeycomb structure allows gas to pass through while increasing contact between VOC molecules and the catalytic surface.
Precious metal catalysts are often used in VOC oxidation because they can support strong activity at lower temperature. The ceramic honeycomb structure also helps control pressure drop, which is important for continuous industrial exhaust treatment.
Catalyst stability affects operating cost. If the catalyst maintains activity for a long time, the system can keep treating VOCs at the expected temperature. If activity declines quickly, the plant may need to raise temperature, increase fuel use, or arrange replacement earlier than planned.
This is why catalyst protection is as important as catalyst quality. Filtration, gas composition review, temperature control, and proper operating conditions all help extend catalyst life.
A VOC Concentrator with CO route is not suitable for every exhaust stream. Some gas conditions may require RTO, RCO, stronger pretreatment, or another combined route.
If the exhaust contains high levels of sulfur, halogens, silicone compounds, heavy metals, or sticky aerosols, catalyst life may be affected. If dust or oil mist is difficult to control, the catalytic bed may become blocked or contaminated. If the VOC concentration changes sharply, the CO unit may face unstable temperature control.
High-temperature exhaust may also need special review. If the gas enters the system too hot, adsorption performance in the concentrator may be reduced. Cooling or process adjustment may be needed before concentration. If the stream is already highly concentrated and airflow is small, a direct oxidation route may be reviewed instead.
This does not reduce the value of CO treatment. It simply means the route should follow the gas condition. Clean, stable, catalyst-friendly VOC streams are stronger candidates for lower-temperature catalytic oxidation. Complex or unstable streams should be reviewed with a broader treatment strategy.
Eco Nova Group evaluates these points by looking at the full project data: airflow, VOC concentration, solvent composition, temperature, humidity, particulate level, operating hours, and emission target. This helps the plant avoid selecting a system based only on equipment names.
For Eco Nova Group, VOC Concentrator with CO integrated machine is a lower-temperature catalytic route for clean, controllable VOC streams where energy use and catalyst protection are both priorities. The concentrator reduces unnecessary air volume, the CO unit provides catalytic oxidation, and the catalyst supports efficient conversion at suitable temperature. If your plant is reviewing clean VOC exhaust and wants a compact catalytic treatment route, contact us to discuss whether a CO integrated machine can fit your project.
It is more suitable for clean and controllable VOC streams with low dust, stable solvent composition, moderate VOC load, and low catalyst poison risk.
CO treatment uses a catalyst to help VOCs oxidize more easily. This allows the reaction to occur at a lower temperature than thermal-only oxidation when the gas is suitable.
Pretreatment removes dust, mist, sticky particles, and harmful components that may cover or poison the catalyst surface. It helps protect catalyst activity and service life.
The catalyst provides active reaction sites for VOC oxidation. Its activity, stability, and honeycomb structure affect conversion efficiency, pressure drop, and operating temperature.
