Factory teams often compare two familiar VOC capture routes first: zeolite rotor concentration and activated carbon adsorption. Both can remove VOCs from exhaust gas, but they do not serve the same kind of project equally well. For continuous industrial exhaust with high airflow and low concentration, a voc rotary concentrator often gives plants more room to control airflow, reduce downstream load, and keep long-term operation stable. Eco Nova Group, located in Dezhou, Shandong Province, supplies VOC treatment equipment for plants that need practical solutions rather than one-size-fits-all pollution control.
A fair comparison should begin with the working condition. Activated carbon adsorption and VOC rotary concentration both rely on adsorption, but their system logic is different. One is often used as a simpler capture or polishing method. The other is designed for continuous concentration before final treatment.

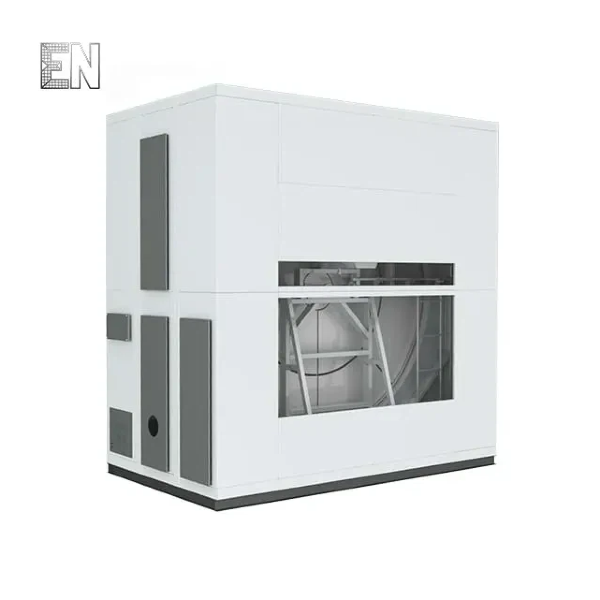

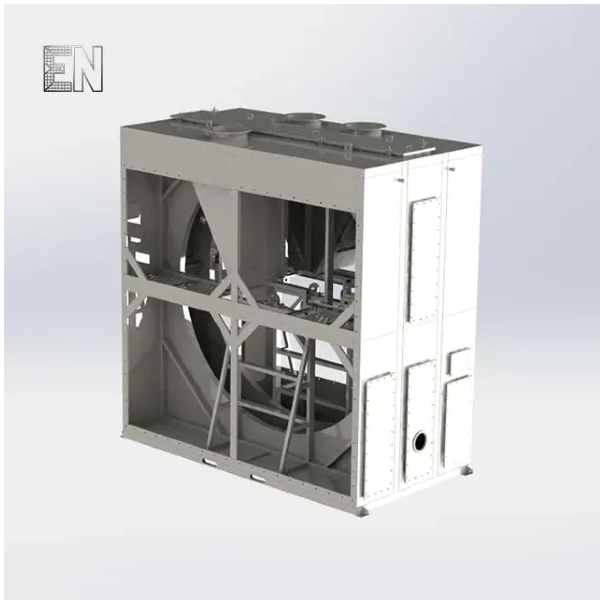

A VOC rotary concentrator continuously adsorbs VOCs from a large exhaust stream and then desorbs them with a smaller hot air stream. This process turns high-airflow, low-concentration exhaust into a smaller, higher-concentration stream that can be sent to RTO, RCO, or CO equipment.
This route is especially useful when the plant has a lot of ventilation air mixed with a relatively low level of VOCs. Coating, printing, packaging, electronics, and material production lines often have this type of exhaust. Sending all the original air directly to oxidation may require a large oxidizer and higher energy consumption. Concentration changes the treatment burden before the final destruction stage.
The rotary design also supports continuous operation. The rotor has different zones for adsorption, desorption, and cooling, so the system can keep working while the production line runs. For plants that need steady emission control during long shifts, this is a major advantage.
Activated carbon adsorption can be useful in smaller-flow projects, batch capture, odor polishing, or situations where the VOC load is relatively limited and easier to manage. Its structure is usually simpler, and many plants are familiar with carbon beds.
However, activated carbon systems need careful review when the exhaust flow is large, the solvent load changes often, or the plant expects continuous operation. Carbon may need replacement, regeneration, or disposal. If the gas contains high-boiling compounds, sticky substances, or high concentration peaks, the bed may become saturated faster than expected.
Fire safety is another point. Carbon is combustible, so temperature control and hot spot prevention are important. Some solvent mixtures can increase operational risk if the system is not monitored and maintained properly. For this reason, activated carbon adsorption should not be treated as a universal solution for every VOC project.
The main difference between the two routes becomes clearer when the project is viewed from airflow, operating mode, safety, and long-term maintenance. A high-airflow low-concentration project needs a system that does more than capture pollutants. It must also manage the volume of air sent to downstream treatment.
Factor | VOC rotary concentrator | Activated carbon adsorption |
Best-fit exhaust | High airflow, low concentration | Smaller or simpler capture duties |
Operation mode | Continuous adsorption and desorption | Fixed bed or replace/regenerate cycle |
Fire safety | Zeolite media is non-flammable | Carbon needs stricter temperature control |
Back-end treatment | Works with RTO/RCO/CO | Often needs regeneration or disposal |
Long-term stability | Strong for continuous industrial loads | Depends heavily on solvent and maintenance |
For industrial plants, the question is not only which system can adsorb VOCs. The more practical question is which system can keep doing it under real production conditions. Large airflow, solvent changes, humidity, dust, and peak loads can all affect the final result.
A VOC rotary concentrator is usually more suitable when the plant needs continuous concentration before oxidation. Activated carbon may still be useful, but it often requires more attention to bed saturation, replacement planning, fire prevention, and waste handling.
Safety and maintenance are where the two routes often show their biggest long-term difference. Equipment that looks simple at the beginning may become costly if replacement, downtime, and monitoring are frequent.
Zeolite-based rotary concentrators are designed for repeated adsorption and thermal desorption. The media is non-flammable, which gives it an advantage in applications where controlled hot air regeneration is needed. The rotor can adsorb VOCs at the inlet side and release them in the desorption zone without stopping the whole system.
This controlled process is valuable for continuous industrial exhaust. The system can produce a more stable concentrated stream for the downstream oxidizer. That helps the final treatment unit operate more predictably.
Activated carbon also adsorbs VOCs effectively in many cases, but thermal regeneration and high-temperature conditions require more caution. Because carbon is combustible, overheating, solvent accumulation, and poor airflow distribution can increase risk. For plants with large airflow or changing solvent loads, these safety points should be reviewed carefully.
Maintenance planning is another important difference. A rotor-based system mainly requires attention to filtration, rotor inspection, sealing condition, pressure drop, and control parameters. If the pretreatment system protects the rotor well, the system can support stable long-term operation.
Activated carbon systems often require more frequent replacement or regeneration planning. Once the bed becomes saturated, removal efficiency drops. The plant then needs to arrange carbon replacement, regeneration service, or disposal of spent adsorbent. This can create downtime and operating cost, especially if the VOC load is higher than expected.
For a small or occasional-duty application, this may be acceptable. For a continuous industrial line, repeated carbon handling can become a burden. This is one reason many plants with large air volume begin to review a rotor-based route instead of relying only on carbon beds.
A rotor-based VOC treatment route gives more flexibility when the exhaust is large, diluted, and continuous. Instead of forcing the final oxidizer to treat the entire original air volume, the concentrator reduces the air volume first and sends a smaller concentrated stream to the back-end unit.
This is helpful in coating and printing lines where ventilation airflow is high. It is also useful in electronics and material production, where the exhaust may be clean but diluted. In these cases, the main project challenge is often the amount of air rather than extremely high VOC concentration.
A VOC Concentrator can reduce downstream oxidizer scale and improve the overall energy balance when the gas conditions are suitable. It also allows the system to connect with RTO, RCO, or CO treatment according to the plant’s emission requirement and solvent profile.
The rotor-based route also supports better process control. Airflow, desorption temperature, rotor speed, and concentration ratio can be adjusted according to the project design. This does not mean every project should use the same settings. It means the system can be engineered around real operating data.
The rotor is not just one component inside the equipment. It is the core part that affects adsorption performance, airflow stability, pressure drop, desorption efficiency, and long-term reliability. A strong system depends on the quality of the rotor material and structure.
For VOC concentration, adsorption material should match the exhaust composition. Pore structure affects how VOC molecules are captured. Hydrophobicity affects performance when moisture is present. Thermal stability affects repeated desorption. Mechanical strength affects pressure drop and service life.
If the rotor material is poorly matched, the whole system can suffer. Adsorption efficiency may decline, desorption may become unstable, or the downstream oxidizer may receive an inconsistent VOC load. That is why rotor quality should be considered early in the project, not only after the equipment layout is confirmed.
Eco Nova Group provides rotor-based VOC treatment solutions that focus on the relationship between airflow, concentration ratio, solvent type, and downstream treatment. For plants comparing a rotor route with activated carbon adsorption, the rotor core is one of the most important technical points to review.
Activated carbon adsorption still has practical use in smaller, simpler, or polishing duties, but for continuous industrial VOC control with high airflow and low concentration, the voc rotary concentrator route often gives a stronger balance of energy use, safety, and integration potential. Eco Nova Group supports plants by reviewing airflow, VOC concentration, solvent composition, operating rhythm, and downstream treatment needs before system design. If your project needs a more stable route for continuous VOC exhaust, contact us to discuss whether a Cylindrical Zeolite Rotor solution is suitable.
No. Activated carbon can still be useful for smaller or simpler duties. A voc rotary concentrator is often more suitable for continuous high-airflow, low-concentration industrial exhaust.
Carbon beds may require frequent replacement, regeneration, or disposal when VOC load is high or operation is continuous. Fire safety and saturation control also need careful attention.
A VOC Concentrator captures VOCs from a large exhaust stream and releases them into a smaller concentrated stream. This can reduce the load on downstream RTO, RCO, or CO equipment.
The rotor affects adsorption efficiency, desorption stability, pressure drop, and long-term operation. Its material quality and structure directly influence the performance of the whole VOC treatment system.
