Fully Automatic Dosing Device

The fully automatic dosing device is an integrated automatic control supporting equipment, equipped with an advanced control system and high-precision sensors, which can accurately realize fully automated management of the pharmaceutical proportioning, dissolving and stirring, dosing and flow monitoring processes.

Availability:

Quantity:



Inquire Add to Basket

Waste water treatment VOC Concentrator Waste Gas Treatment Chemical reactor Fine Chemical EPC

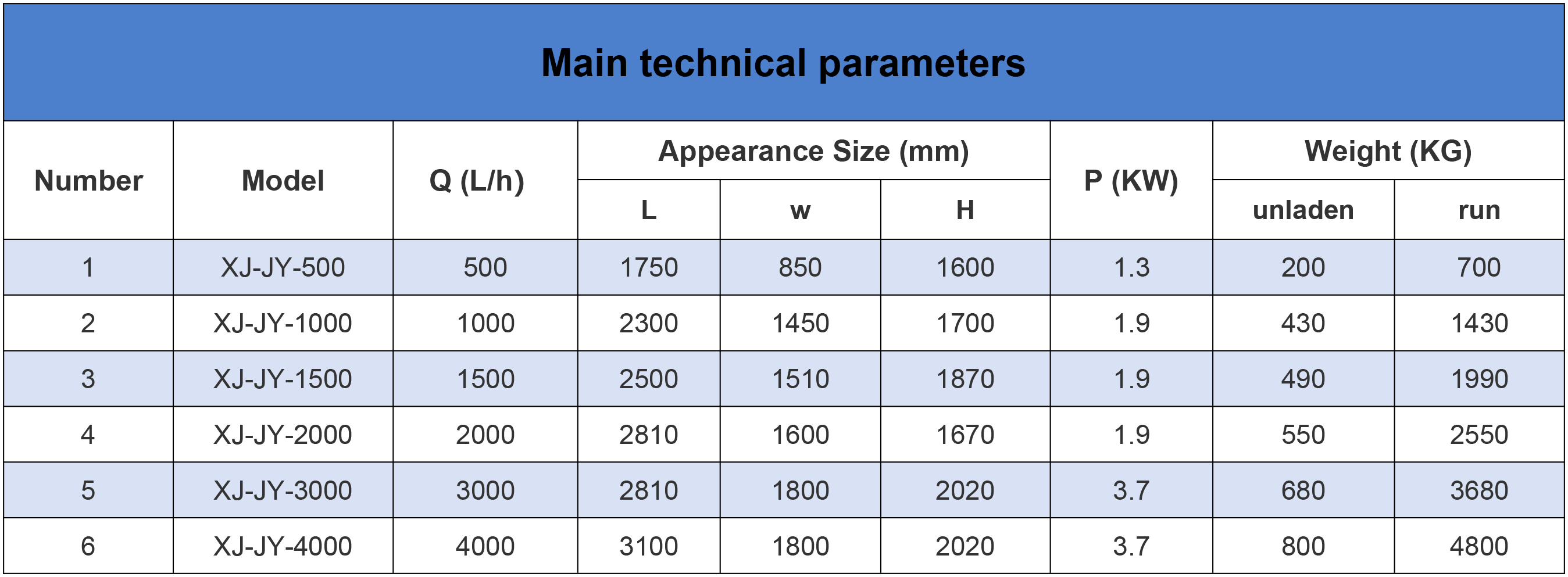

Technical Parameters

Working Principle

Product Advantage

Application

FAQ

WPS图片(1) (1)

Working Principle

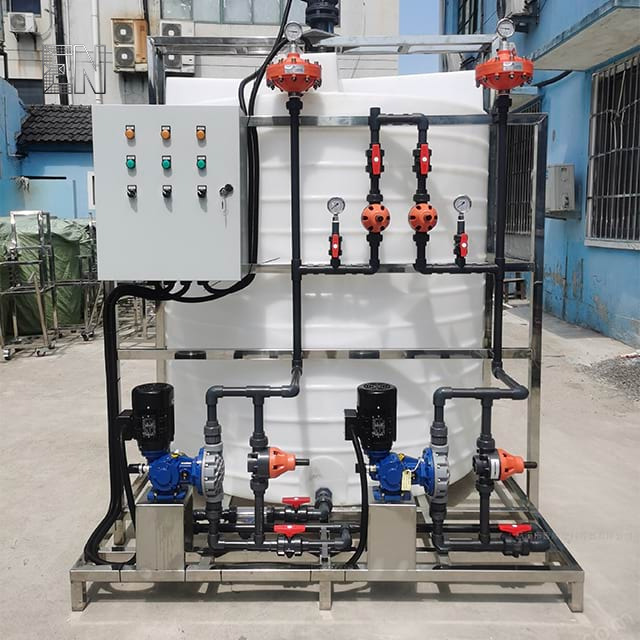

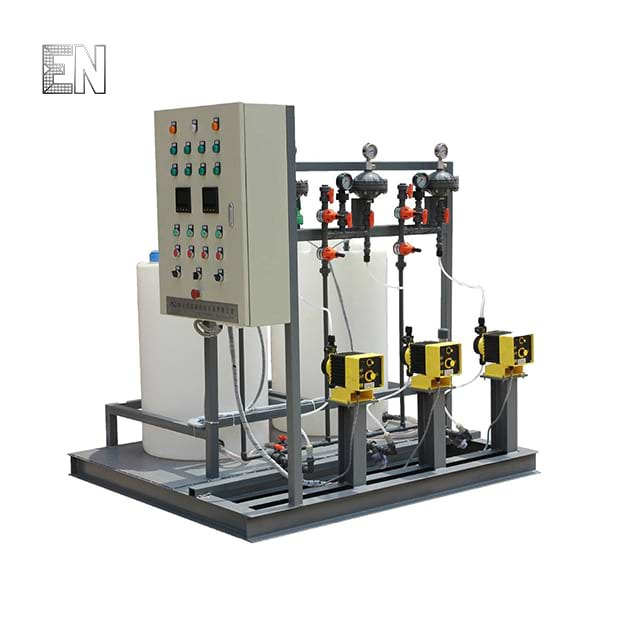

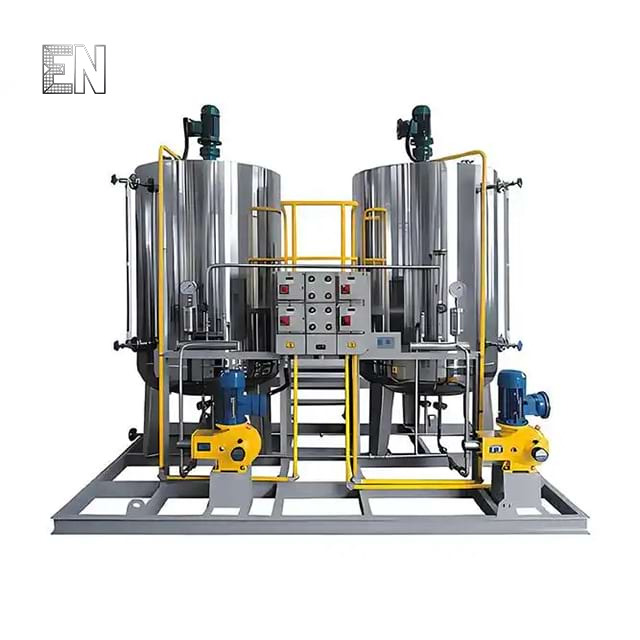

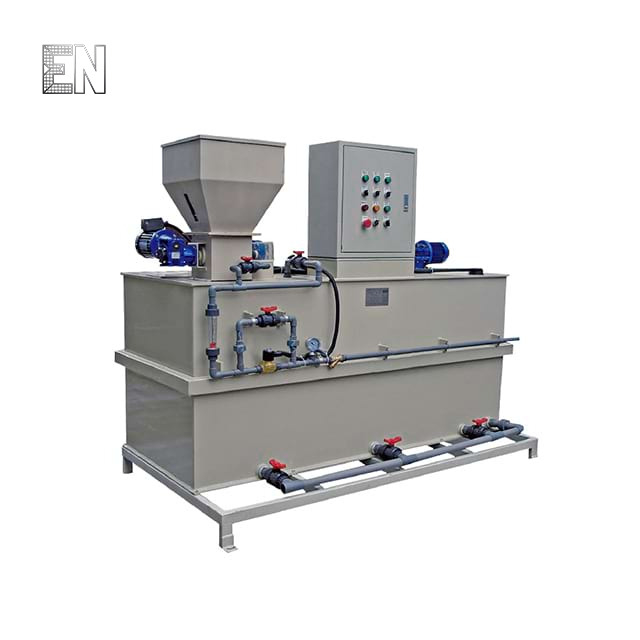

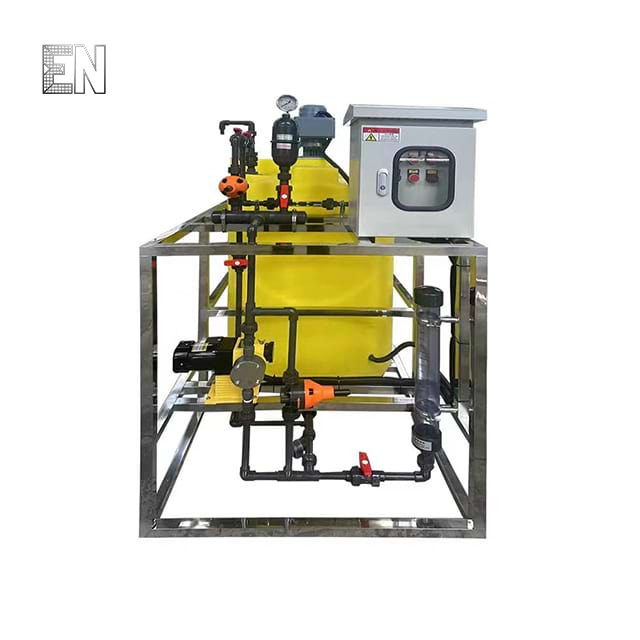

The fully automatic dosing device is mainly composed of a solution tank, a metering pump, a safety valve, a level gauge, a needle valve, a ball valve, an agitator, a Y-type filter, a chassis and other components.

The working principle of the fully automatic dosing device is based on the pre-set program and algorithm. The device monitors the water quality or process parameters (such as conductivity, pH, etc.) in real time through sensors, and feeds the data back to the intelligent control unit to achieve accurate and automatic dosing of the agent according to actual needs, ensuring that the monitoring data is stable within the target range.

Product Features

Electromagnetic diaphragm metering pump is used. The flow error is controlled within ±0.1%, ensuring accurate dosing of the reagent.

High metering accuracy
The device can meet various process requirements such as descaling, deoxygenation, coagulation, acid addition, alkali addition, etc. We can provide customized solutions.

Wide applicability
The device supports manual/automatic mode switching. The dosing operation can be performed manually or connected to electrical instruments such as PC, magnetic flap level gauge, stroke controller, etc. to achieve mechatronic automatic control.

High degree of automation

Application

Water supply system

The water plant mainly uses this equipment to pre-treat and disinfect tap water to ensure water safety. Large enterprises use this equipment to add scale inhibitors to prevent pipe scaling in their own water plants.

Power industry

The equipment is used to adjust the pH value of the water supply system, add scale inhibitors to circulating cooling water, and neutralize wastewater to ensure stable and safe operation.

Petrochemical industry

This equipment is used in boiler water treatment systems, wastewater treatment, etc. It helps to improve water quality and increase production efficiency.

Other industries

Such as swimming pools, hospital wastewater treatment, building water and other industries. The equipment is used to add disinfectants to ensure water quality and safety.

Product Operate Guide

Check the equipment status
Startup and operation
Turn off the machine

Check the equipment status

Check the equipment status and set the operating parameters. Confirm whether the components of the device (metering pump, agitator, sensor, etc.) are firmly connected, without looseness or leakage.
Check the liquid level of the liquid tank to ensure sufficient medicine.
Turn on the main power supply and the control box power supply in turn, and set the dosing frequency, number of times, time and target flow rate.
Startup and operation

The user switches the manual or automatic dosing mode according to actual needs, and monitors the operation of the device through the background program.
Turn off the machine

Turn off the metering pump and stop dosing; Cut off the power supply to the control box and turn off the main power switch; Clean the remaining dosing agents on the surface of the equipment, and record the operating time and dosing amount.

FAQs

Material selection of the device

Different materials can be selected according to the different conveying media, such as carbon steel (carbon steel lined with rubber), stainless steel or non-metallic materials (PE/PVC/PP/PTEE, etc.) to meet the needs of various complex industrial environments.
The metering pump does not discharge medicine

It may be due to crystallization of the medicine or deposition of impurities, which leads to pipe blockage. It is recommended to clean the pipe in time and complete daily maintenance regularly.
Handle equipment alarms

(1) Low liquid level alarm: It is recommended to add medicine in time to avoid the metering pump running at no speed;
(2) Overpressure alarm: Check whether the pipeline is blocked or the valve is abnormal in time, and reset it after solving the problem.
(3) Sensor failure: Recheck or replace the probe to ensure the data is accurate.
