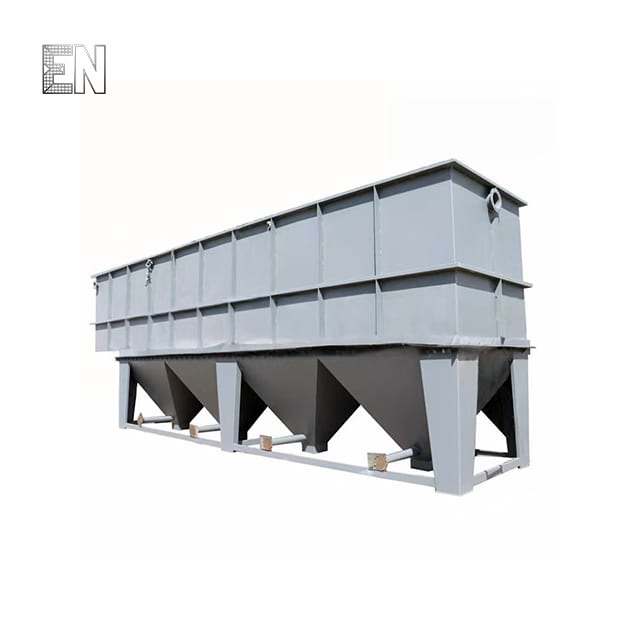

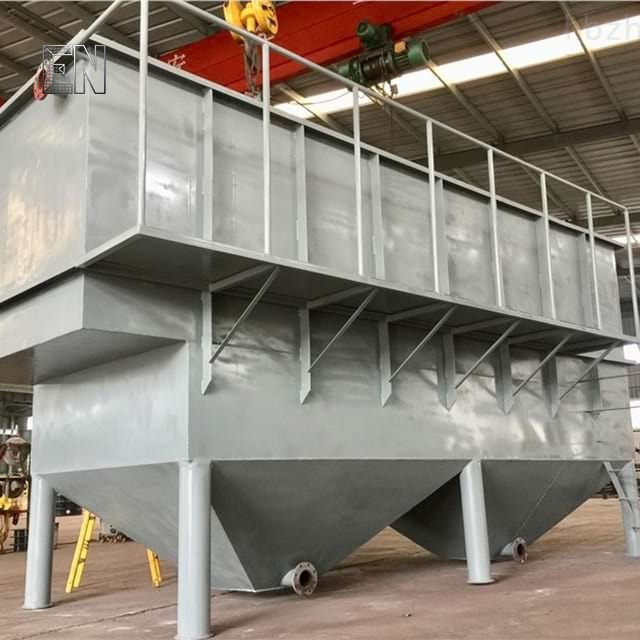

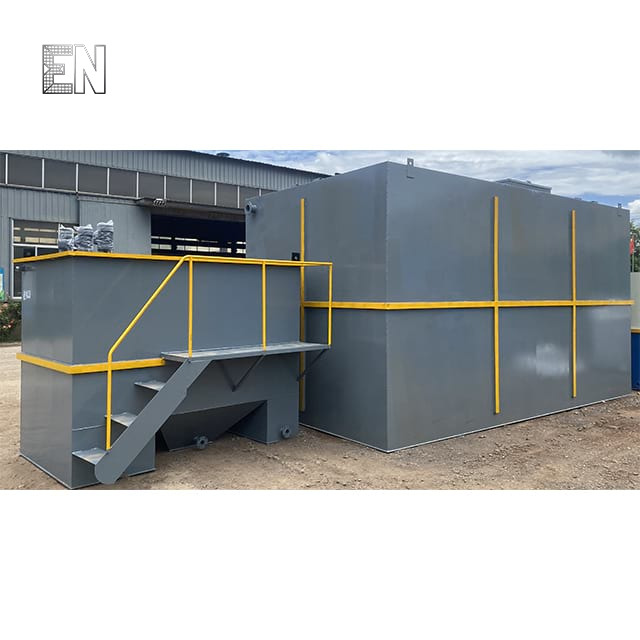

High Efficiency Sedimentation Tank

High-efficiency sedimentation tank is an innovative sedimentation device that integrates sedimentation and thickening functions. This device integrates the theories of sludge coagulation, recycling, inclined pipe separation and sludge thickening, and realises mud-water separation and sludge thickening through delicate hydraulic and structural design.

Availability:

Quantity:



Inquire Add to Basket

Waste water treatment VOC Concentrator Waste Gas Treatment Chemical reactor Fine Chemical EPC

Technical Parameters

Working Principle

Product Advantage

Application

FAQ

Working Principle

The high-efficiency sedimentation tank is divided into two modules: flocculation and sedimentation.

After adding flocculants into the flocculation tank, the turbine agitator in the tank stirs at multiple circulation rates, and the suspended solids in the water are fully sheared, thereby forming large flocs that are easy to settle.

The sedimentation tank is divided into a pre-sedimentation zone and an inclined tube sedimentation zone by a partition. In the pre-sedimentation zone, large and heavy flocs settle quickly, while small and light flocs are finely captured by the inclined tube. The effluent after the final reaction is uniformly collected and discharged through the water collection tank.

Product Features

Inclined tube sedimentation technology extends HRT and significantly improves surface load capacity. Its sedimentation efficiency is 8 to 10 times that of ordinary sedimentation tanks.

High sedimentation efficiency
A compact equipment that integrates coagulation, flocculation, sedimentation, and sludge concentration. It occupies a small area, and its area is about 1/10 of the traditional process.

Adopt integrated technology
It can adapt to the fluctuation of inlet water quality while ensuring the stability of outlet water quality.

Strong anti-shock load capability
Through the internal circulation of sludge (circulation rate of 5%-10%), 10% to 30% of the reagents can be saved; no sludge scraping or sludge concentration equipment is required. The equipment relies on a unique design to achieve gravity sludge discharge, and the sludge discharge volume can generally reach more than 20g/L, and the sludge solid content is relatively high.

Low energy consumption and cost
It can be used not only for raw water purification, but also for sewage coagulation and sedimentation to remove SS. It can even be used for softening and clarification of processes such as reclaimed water reuse and membrane concentrated water.

Wide application

Application

Coal washing and mining wastewater treatment in coal mines

By utilizing its efficient precipitation function, the SS of wastewater can be effectively reduced. At the same time, the precipitated coal slime and other materials can be recycled and have certain economic benefits.

Treatment of black and smelly rivers and water bodies

It plays a role in source control and pollution interception, reduces the pollution load of sewage, and prevents the pollution input of sewage from the source.

Oil production wastewater treatment

By adding demulsifiers and other agents, the initial separation of oil, water and suspended solids is achieved in the high-efficiency sedimentation tank, laying the foundation for subsequent treatment.

Wastewater treatment in daily life

It can be used before the biological treatment unit to remove large suspended matter, sand particles, etc. in the sewage; when used after the biological treatment unit, it can further remove the remaining suspended matter, detached biofilm, etc. in the water to meet the discharge or reuse requirements.

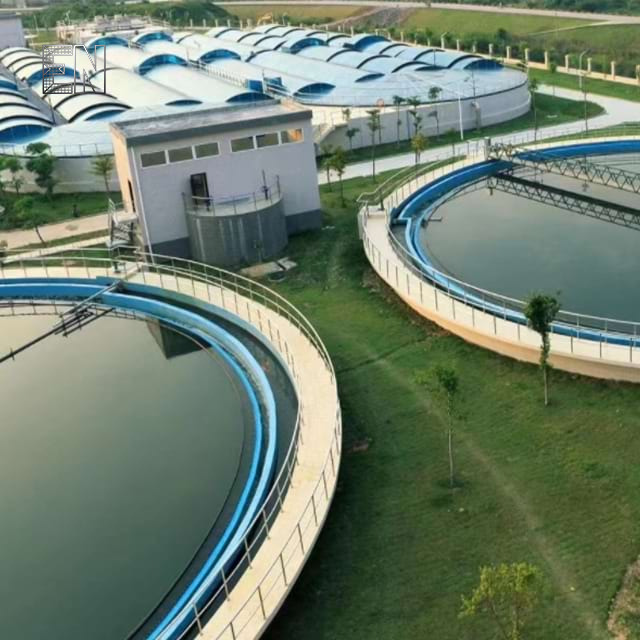

Renovation, upgrading, and incremental expansion of sewage treatment plants

As an important component of the deep treatment equipment system, this equipment can improve the quality of effluent water. This equipment can also flexibly expand the scale of sewage treatment by connecting multiple cells in series or in parallel.

FAQs

What are the process forms and what materials can be selected?

Currently, the conventional processes of high-efficiency sedimentation tanks mainly include flocculation sedimentation, concentrated sedimentation, magnetic flocculation, pulse clarification, etc. The materials can be carbon steel anti-corrosion, stainless steel, carbon steel anti-corrosion fiberglass lining, etc.
Reasons for sludge floating

(1) The sludge stays in the pool for too long, and the gas produced by anaerobic fermentation adheres to the sludge flocs, which causes the sludge to float. At this time, the sludge retention time and sludge discharge frequency should be adjusted in time to avoid sludge accumulation in the pool.
(2) Sudden changes in influent water quality. For example, excessively high organic matter concentration changes the sludge properties, deteriorates the sedimentation performance, and causes the sludge to float. Strengthen the monitoring and control of influent water quality, adjust the amount of coagulant added, increase the pretreatment process, etc., to stabilize the sludge properties.
