1. The heat exchanger realizes heat transfer between fluids of different temperatures mainly based on the thermodynamic laws of heat conduction and heat convection. Generally, only heat is transferred without mixing of media.
2. Recuperative heat exchangers (shell and tube, U tube, floating head type): The hot and cold fluids are separated by metal tube walls or plates without direct contact. Heat is transferred from the high temperature fluid to the low temperature fluid through the solid wall. The hot fluid releases heat with temperature reduction while the cold fluid absorbs heat with temperature rise. This is the most commonly used type in the chemical industry.
3. Direct contact heat exchangers: Hot and cold fluids make direct contact and mix with each other to complete heat exchange. It features high heat transfer efficiency, yet the media will be mixed. It is mostly applied in scenarios allowing medium mixing such as cooling towers.
4. Regenerative heat exchangers: Thermal storage packing serves as an intermediate carrier. The hot fluid first heats the packing to store heat; then the cold fluid is introduced, and the packing releases the stored heat to the cold fluid. Heat exchange is achieved by the alternate flow of fluids.
5. The equipment fulfills process requirements to realize heating, cooling, condensation and preheating of media.

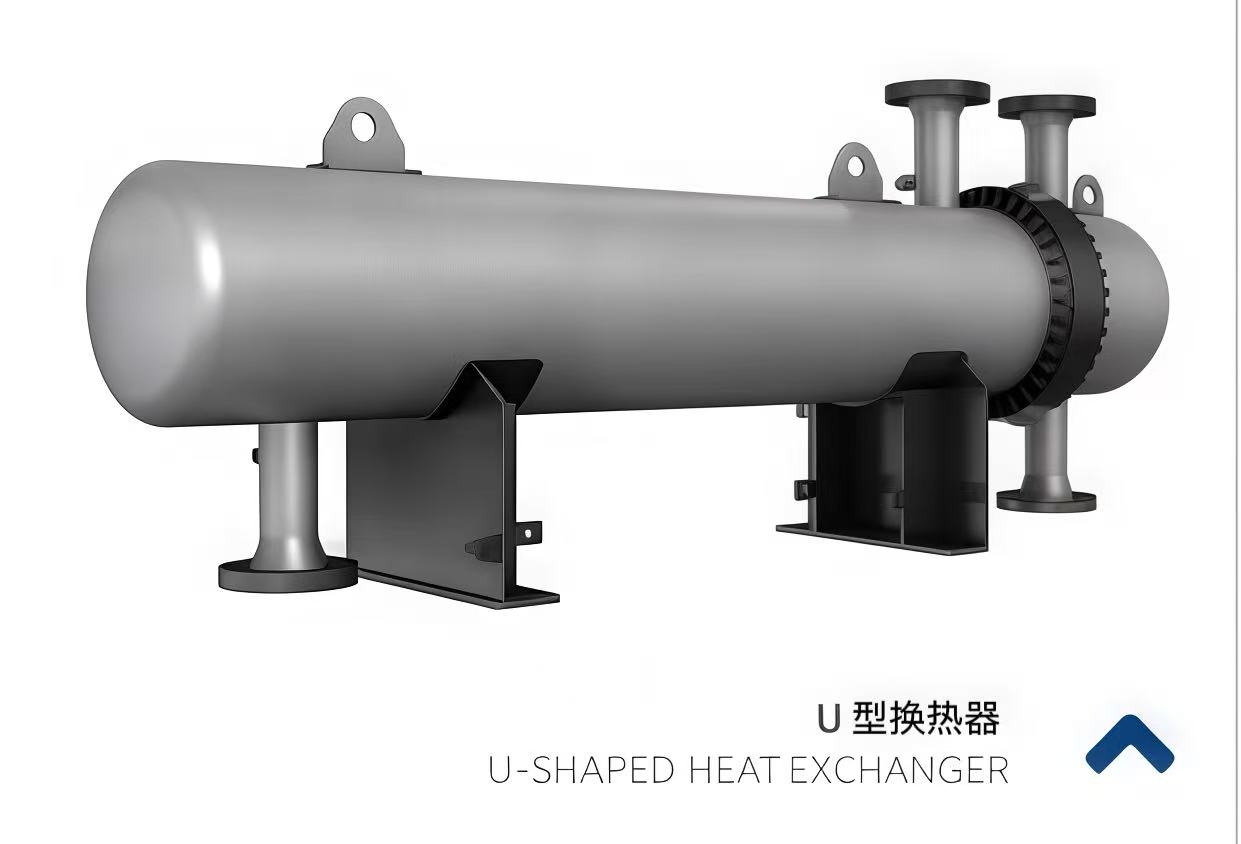

1. U Shaped Heat Exchanger
Advantages: The tube bundle expands and contracts freely without thermal expansion stress; excellent high temperature and high pressure resistance, reliable sealing, compact structure and moderate cost. Disadvantages: Inconvenient cleaning of tube interiors, prone to scaling; not suitable for media with high impurity content.
Applications: High temperature and high pressure working conditions in power generation and petrochemical industries.

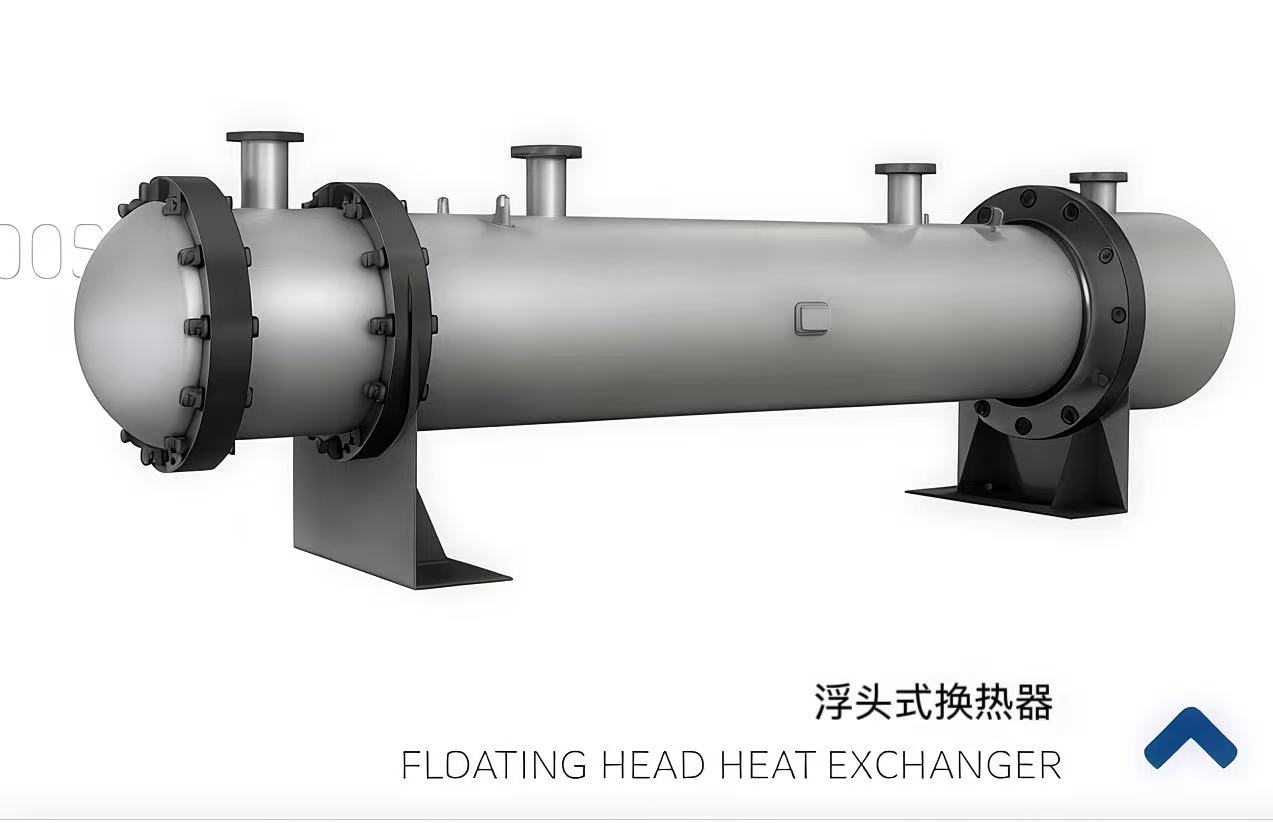

2. Floating Head Heat Exchanger
Advantages: One floating end completely eliminates thermal stress; the tube bundle can be pulled out for easy cleaning and maintenance; compatible with high temperature, high pressure and scaling prone media.
Disadvantages: Complex structure and high cost; minor risk of leakage at the floating end.
Applications: Complex working conditions in petroleum refining and fine chemical industries.

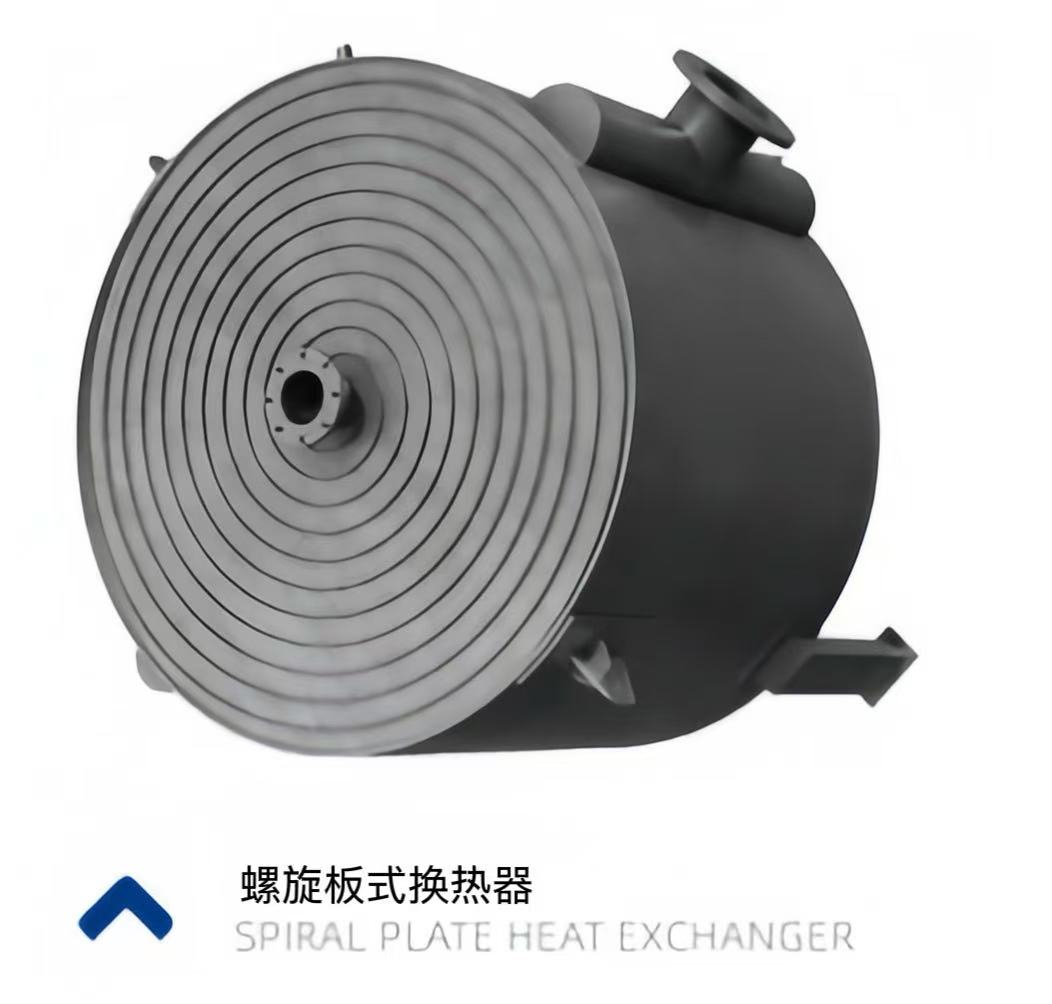

3. Spiral Plate Heat Exchanger
Advantages: Spiral counter current flow channels generate strong turbulence for high heat transfer efficiency; compact layout, good self cleaning performance and superior energy saving performance.
Disadvantages: Low pressure bearing capacity, difficult maintenance; individual plates cannot be replaced.
Applications: Waste heat recovery and heat transfer scenarios with low temperature, low pressure and clean media.

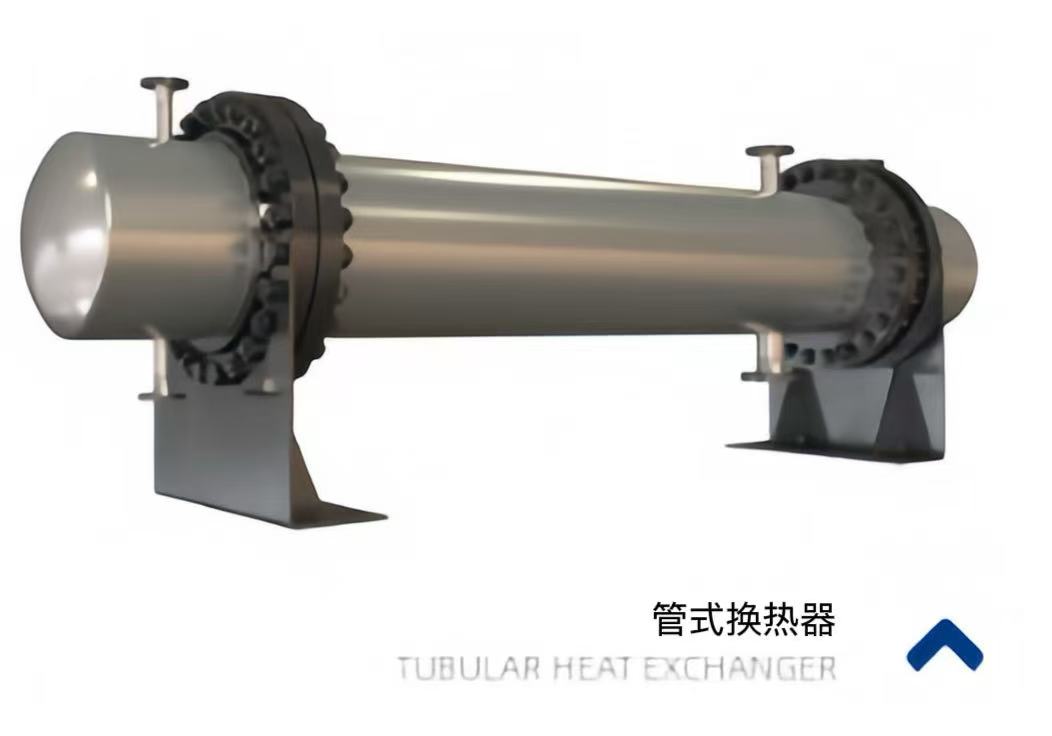

4. Tubular Heat Exchanger
Advantages: Simple structure, robust durability, high cost performance, broad media compatibility and convenient maintenance.
Disadvantages: Moderate heat transfer efficiency.
Applications: Most conventional working conditions including HVAC, power generation and general chemical processes; a universal industrial grade piece of equipment.

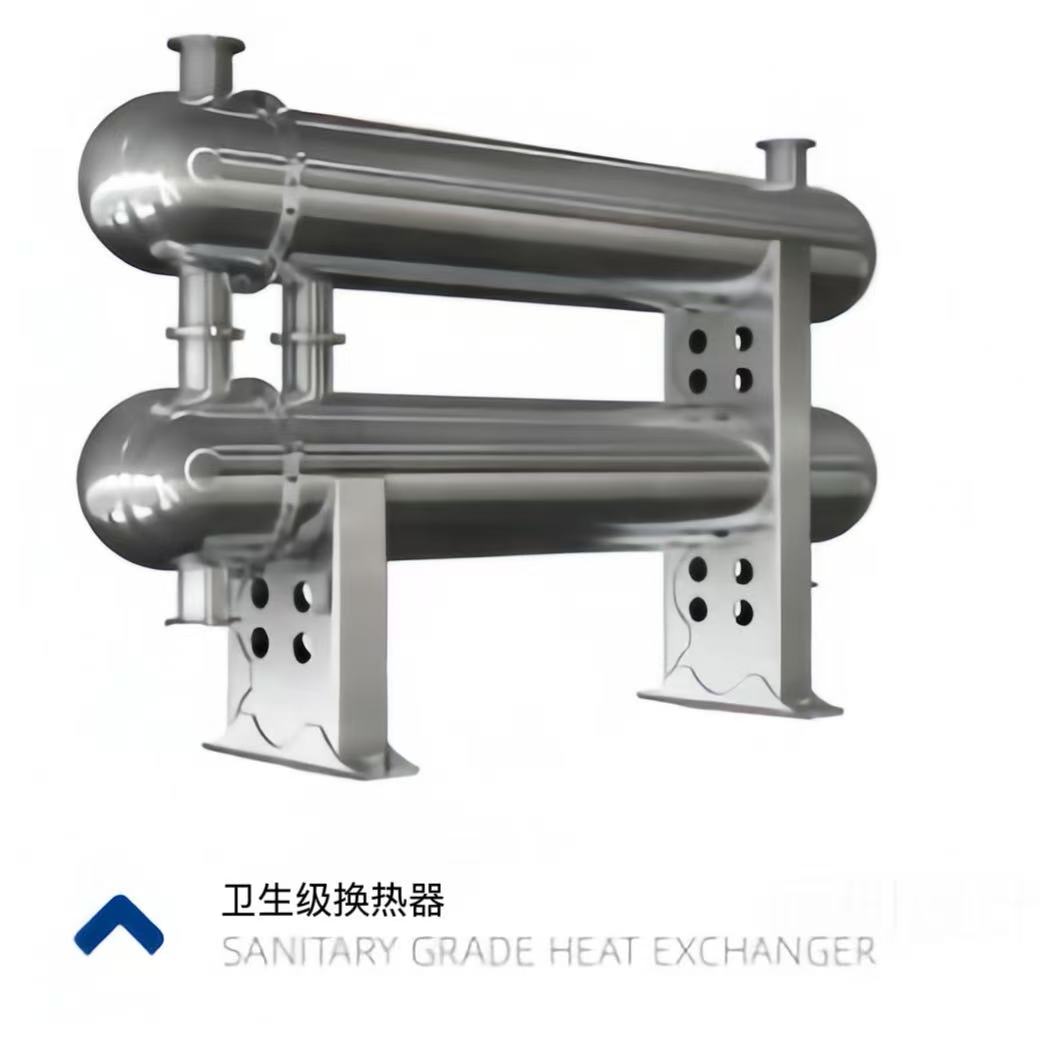

5. Sanitary Grade Heat Exchanger
Advantages: Full stainless steel mirror polished construction with no dead corners or residual deposits; sterile and pollution free; supports on line cleaning and sterilization with excellent sealing performance.
Disadvantages: Relatively high cost; only applicable to clean process conditions.
Applications: High purity industries such as food, beverage, pharmaceutical and bioengineering.
The material of heat transfer tubes determines the equipment’s temperature resistance, pressure resistance and corrosion resistance. Three mainstream material categories are listed below:
1. Carbon Steel High cost performance, good mechanical strength and mature processing technology. Suitable for heat exchange of water, steam and ordinary oil products under normal temperature and pressure without severe corrosion. It is a general purpose industrial tubing material and cannot resist acid alkali or seawater corrosion.
2. Stainless Steel Grades 304 and 316L are the most widely used. Featuring corrosion resistance, oxidation resistance and low scaling tendency with long service life. Suitable for heat transfer scenarios involving seawater, chemical acid alkali media and clean processes in food and pharmaceutical sectors. It is the preferred material for mid to high end equipment.
3. Special Alloys and Non Ferrous Metals Copper alloys deliver outstanding thermal conductivity and are widely used in air conditioning and precision heat transfer equipment. Titanium tubes and nickel based alloys withstand ultra high temperatures and heavy corrosion, applied in extreme conditions such as marine engineering, nuclear power and fine chemicals, at a relatively high cost.
Match equipment selection to actual working conditions:
Use plain carbon steel tubes for conventional clean condition applications
Adopt stainless steel tubes for corrosive or high purity working conditions
Select U tubes for high temperature, high pressure and space limited environments
Prioritize finned tubes or threaded tubes for enhanced heat transfer performance
Focus on scale prevention, corrosion prevention and blockage prevention:
Regularly clean internal and external tube wall deposits to avoid reduced heat transfer efficiency and increased energy consumption
Periodically inspect tube wall wear and corrosion, and replace damaged tubes in a timely manner
Follow standard start up and shutdown procedures to mitigate thermal stress damage and extend equipment service life
