Sludge Scraper

The sludge scraper is an important supporting equipment for solid-liquid separation process, mainly used in sedimentation tanks, secondary sedimentation tanks or thickening tanks. The equipment collects the sludge at the bottom of the tank mechanically and discharges it to the sludge outlet for subsequent treatment.

Availability:

Quantity:



Inquire Add to Basket

Waste water treatment VOC Concentrator Waste Gas Treatment Chemical reactor Fine Chemical EPC

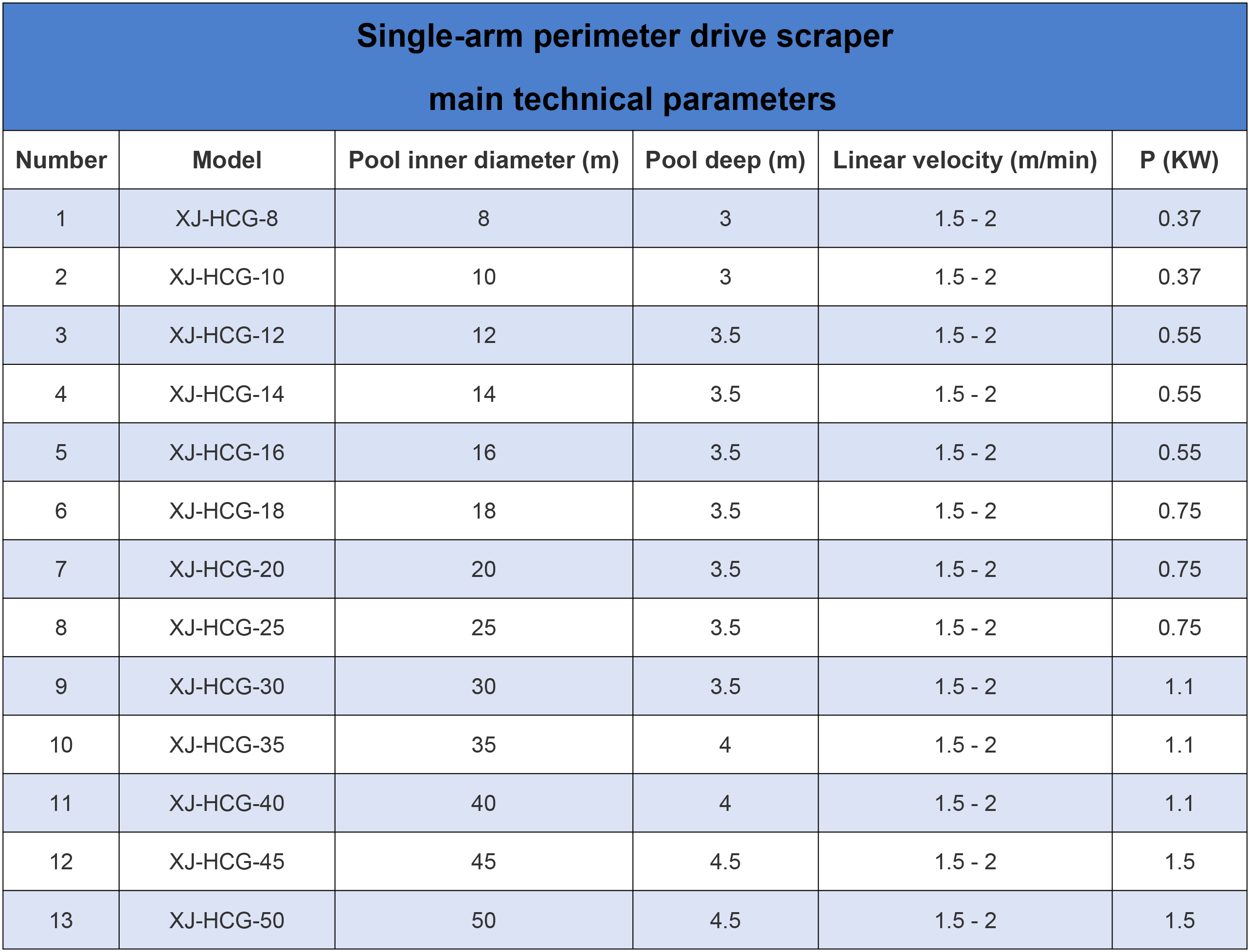

Technical Parameters

Working Principle

Product Advantage

Application

FAQ

Working Principle

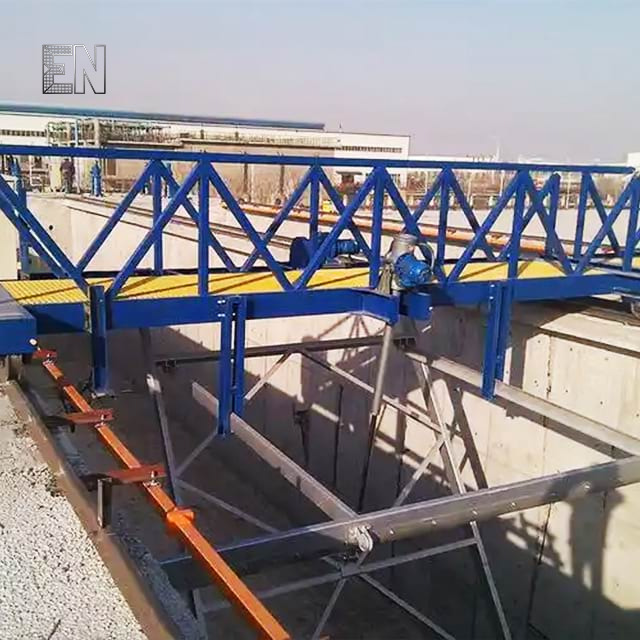

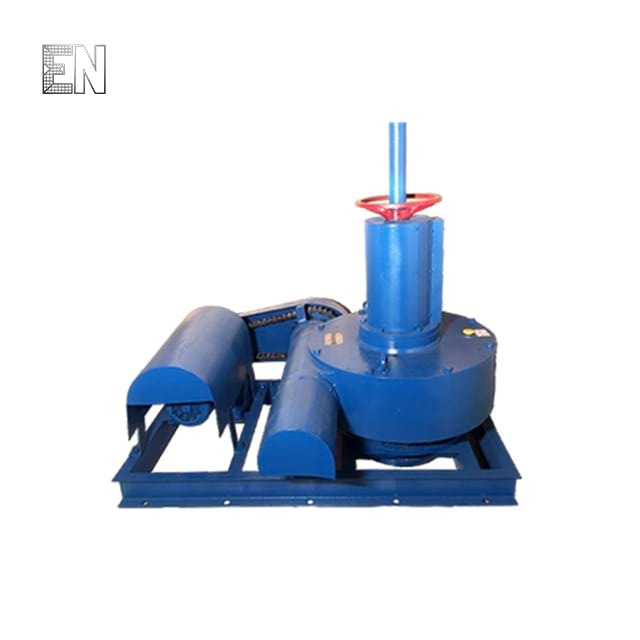

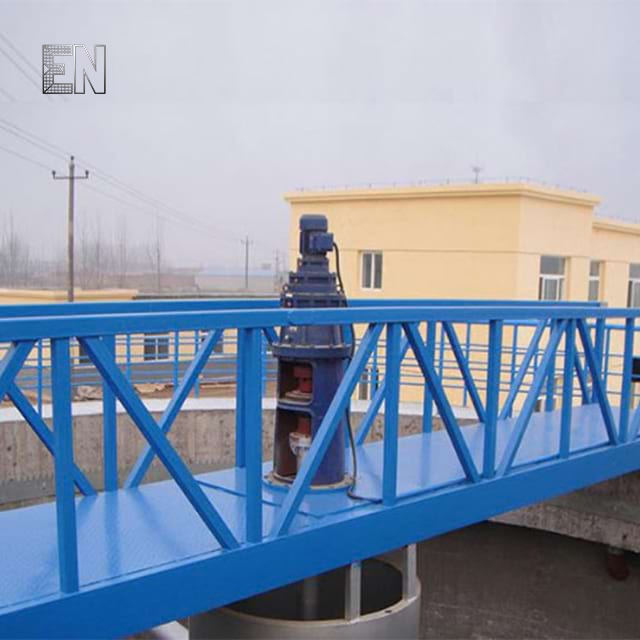

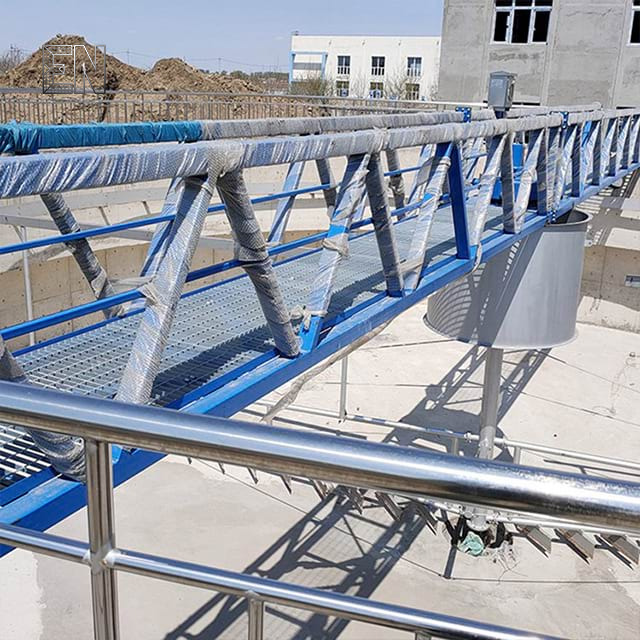

The scraper consists of a drive device, a working bridge, a main scraper, an auxiliary scraper, a central turntable, a slag skimmer, an overflow weir plate, a slag retaining plate, a current collector, etc.
Driven by a chain or motor, the scraper moves back and forth along the pool wall or bridge. The scraper gradually pushes the deposited sludge to the center of the pool or the sludge outlet, and the sludge is discharged by the sludge discharge pipe or pump, thereby achieving the purpose of purifying sewage.

Product Features

Mechanized operation is adopted, and the scraping efficiency is high, which can quickly remove the sludge at the bottom of the pool and prevent the sludge from compacting or anaerobic fermentation.

High treatment efficiency
Low energy consumption, simple structure, convenient maintenance, and its operating cost is much lower than manual sludge removal.

Energy saving and environmental protection
It can handle various types of sludge (such as activated sludge, primary sludge, concentrated sludge), and is suitable for pools of different sizes.

Strong adaptability
PLC or timer can be configured to achieve automatic reciprocating operation, and the scraping cycle can be automatically adjusted according to the mud thickness or liquid level.

Automatic control
According to the pool type, sludge characteristics and treatment requirements, different scraping forms can be selected, such as peripheral transmission type, central transmission type, gantry type, single-arm peripheral rotation type, etc.

Customized design

Application

Municipal sewage treatment

Mainly used in urban sewage treatment plants to clean up sludge and scum in secondary sedimentation tanks and effluent sedimentation tanks.

Industrial wastewater treatment

Mainly used in sludge concentration tanks in chemical, food, pharmaceutical and other industries.

Environmental protection projects

Mainly used in environmental protection projects, such as dredging of rivers and lakes.

FAQs

When selecting a scraper, the following key parameters should be focused on

(1) Power, speed, scraping speed: these data affect the sludge processing volume and scraping effect;
(2) Large and small scraper lengths: affect the sludge processing volume and scraping effect;
(3) Pressure mechanism: affect the scraper fit and life;
(4) Scraper type: such as flat, round, wedge, etc., they affect the scraping effect and life.
Motor or reducer failure, heating, abnormal noise or reducer oil leakage

(1) Motor overload or voltage instability: Check the motor current and voltage to avoid overload operation;
(2) Reducer poor lubrication or seal failure: Regularly replace the reducer lubricating oil and check the seals;
(3) The scraper has too much running resistance: Reduce the scraper running load and adjust the scraping parameters.
