VOC Concentrator

VOC Concentrator is a kind of adsorption and concentration equipment, which can concentrate organic waste gas with high air volume and low concentration into waste gas with low air volume and high concentration by virtue of its high adsorption efficiency and fast desorption. This process not only improves the treatment efficiency, but also significantly reduces the investment and operating costs of the equipment, and ultimately achieves the purpose of economic and effective organic waste gas treatment.

Availability:

Quantity:



Inquire Add to Basket

Waste water treatment VOC Concentrator Waste Gas Treatment Chemical reactor Fine Chemical EPC

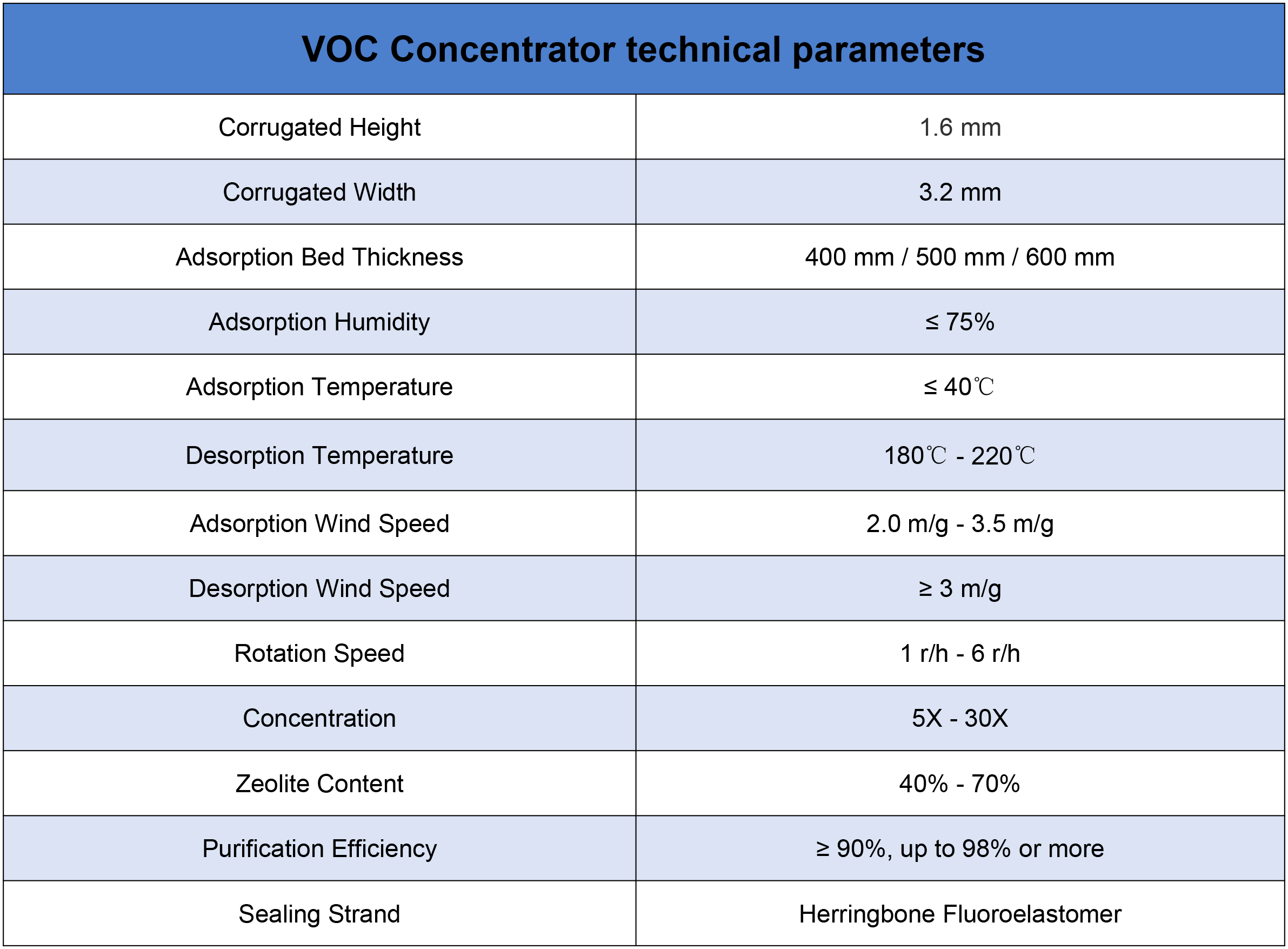

Technical Parameters

Working Principle

Product Advantage

Application

FAQ

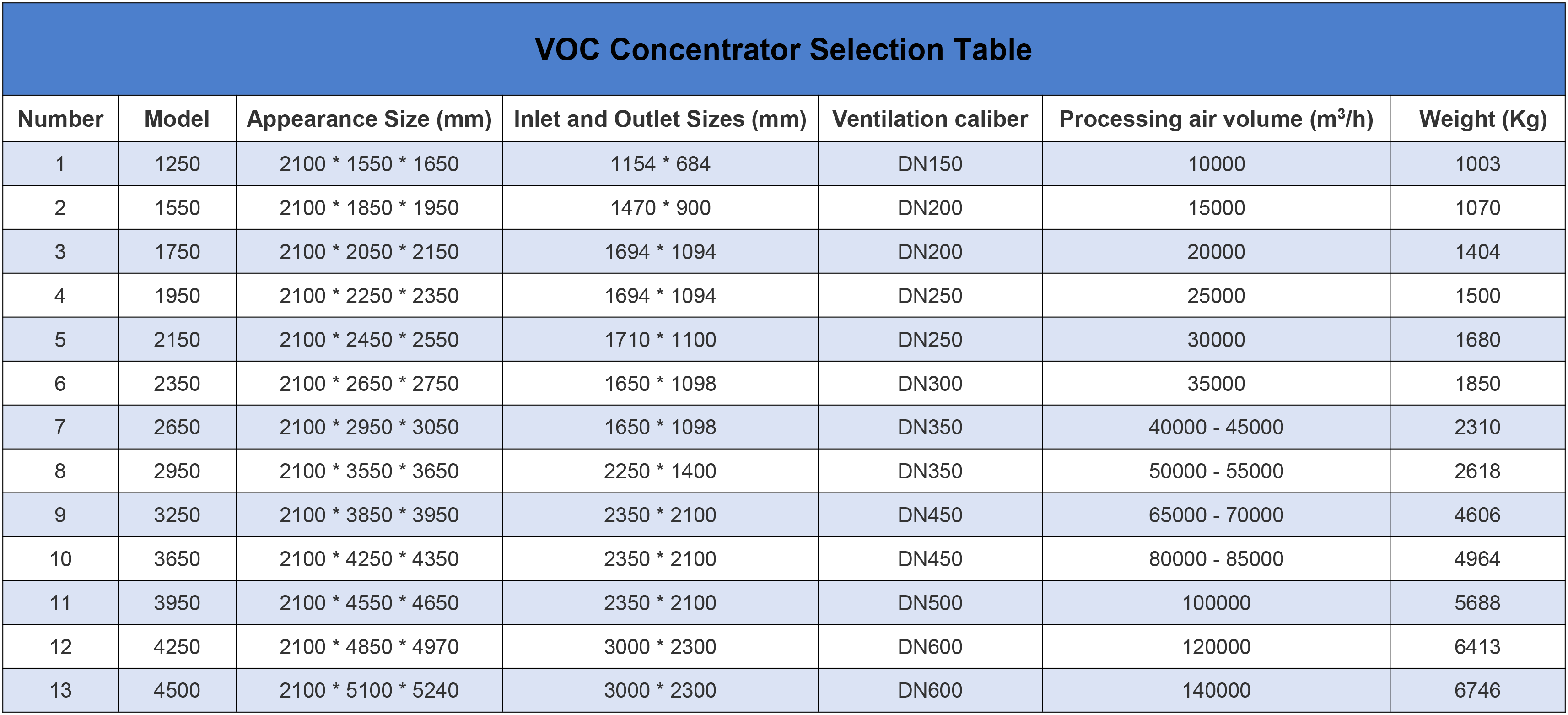

Solution Selection

Working Principle

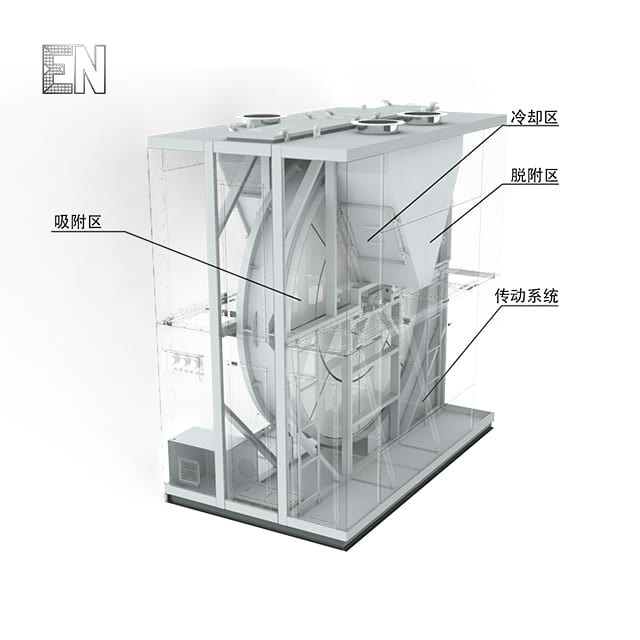

The VOC Concentrator adopts the mode of ‘adsorption-desorption-cooling’ to realise the waste gas treatment. Exhaust gas firstly enters the adsorption area of the rotor, and organic components are adsorbed onto the small holes of the rotor; the adsorption saturated small holes are backblown by small flow rate of hot air to achieve efficient desorption of highly concentrated exhaust gas, and then enters into the back-end of the regenerative heat incineration device for combustion treatment, and the exhaust gas is finally discharged into the atmosphere in the form of carbon dioxide and water vapour to complete the concentration of large-volume, low-consistency organic waste gas; the desorption of the clean The clean adsorption carrier is transferred to the cooling area, cooled to room temperature by air, and continues to enter the adsorption stage, and so on in a continuous cycle of work.

Product Features

(1) Using self-developed sintering process, the strength of VOC Concentrator module is increased by nearly 10%, the adsorption capacity is increased by 20-30 percent, and the desorption time is shortened by about 20%, which makes the production more continuous, stable and highly efficient.
(2) Compared with the same type of VOC Concentrator , the pore size of this product is uniformly distributed, and the differential pressure is stably lower than 600Pa, which reduces the incidence of plugging.

Superior product performance
VOC Concentrator replacement cycle is longer, and its minimum service life is 5 years, reducing the long-term operating costs of enterprises.

High economic efficiency, environmentally friendly
VOC Concentrator uses inorganic materials with non-combustible characteristics, no risk of fire.

High safety
We can provide the whole system technical support and service including the front-end pretreatment, end combustion and other processes with the VOC Concentrator, to ensure that the whole system works efficiently and synergistically.

Provide technical support and service

Application

Paint spraying workshop

automobile manufacturing, hardware furniture, shipbuilding, bicycle manufacturing, metal products, etc.

Printing workshop

intaglio printing, building decoration materials printing, packaging printing, etc.

Synthetic resins

Various synthetic resins, rubber products, semiconductors, aluminium profiles, coating, etc.

FAQs

What should I do if the desorption fan is running abnormally?

Change the gas introduced into the VOC Concentrator from factory exhaust to fresh air; set the desorption heat source to OFF, and stop the treatment fan after the VOC Concentrator cools down and no longer runs; in a safe situation, check the desorption fan and its related components, find the cause of the mulfunction, and repair or replace the damaged parts as needed; finally restart the system.
How to solve the problem of VOC Concentrator blockage?

When the VOC Concentrator is blocked, different methods can be adopted according to the severity of the blockage. If it is in the early stage of blockage, please use a vacuum cleaner to clean it; if the blockage is serious, it needs to be treated with clean water. Note that the machine needs to be cooled before cleaning, and the temperature of the water used for cleaning needs to be lower than 50°C.
