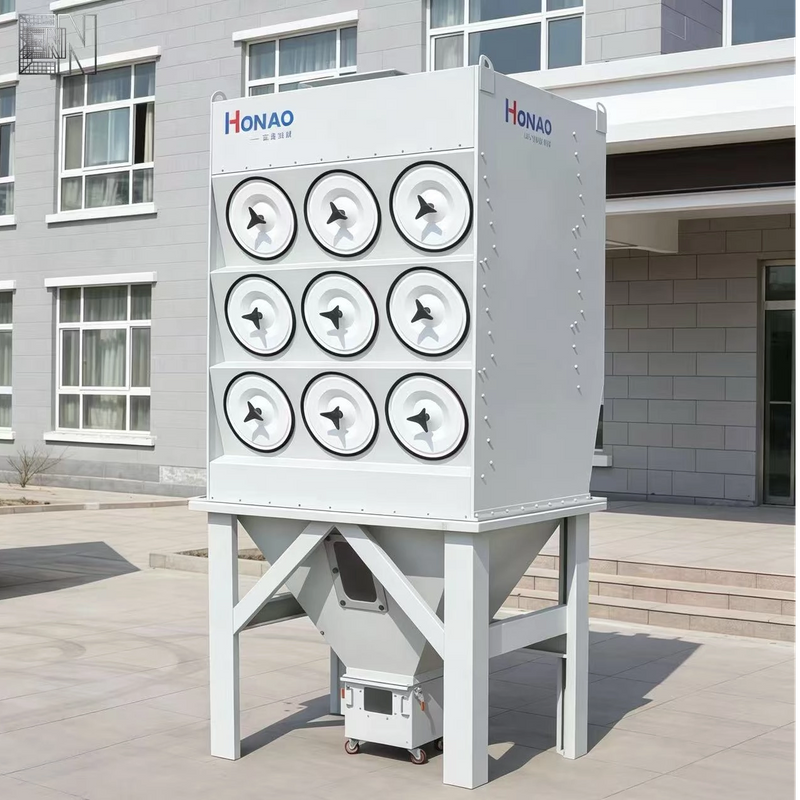

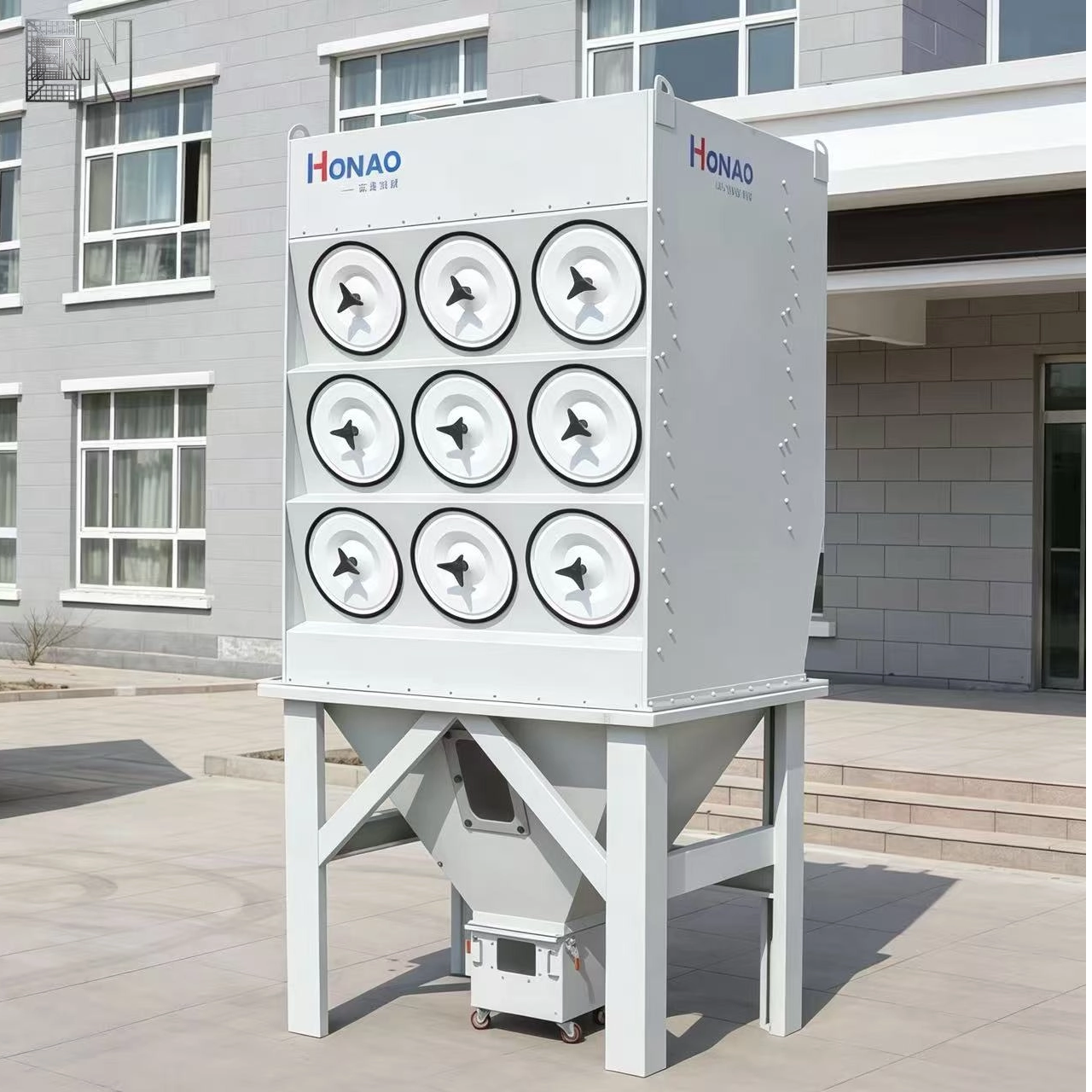

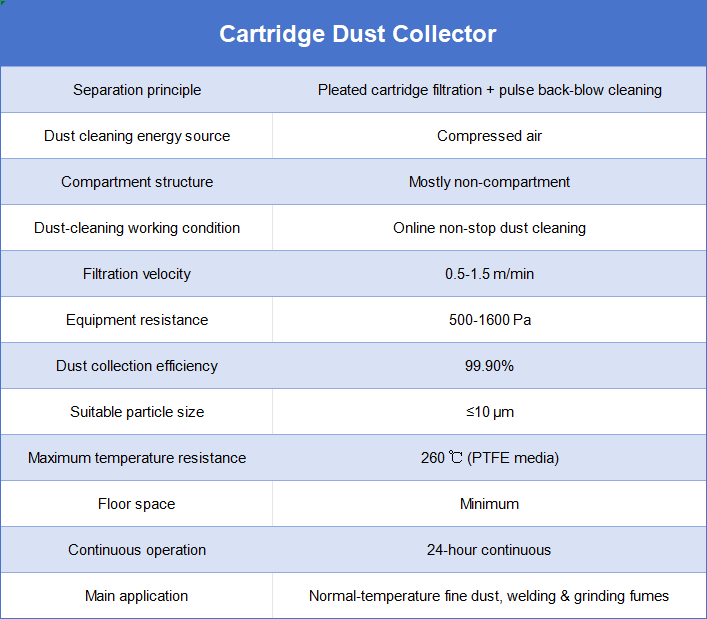

"Compact box-type structure, available in vertical and horizontal configurations, with a footprint significantly smaller than baghouse filters of equivalent airflow. Inside, cylindrical or flat pleated cartridge filters are arranged, accompanied by a compact pulse reverse-jet cleaning system. The bottom is equipped with a dust collection drawer or a small ash hopper. Modular design allows single-unit use or multiple units in parallel, suitable for installation in confined"
Pleated filter media deep filtration combined with pulse cleaning. Dust-laden gas passes from the outside to the inside through the pleated filter media of the cartridge; dust is captured on the outer surface of the cartridge, and clean gas flows out through the central channel of the cartridge. The pulse-jet cleaning system injects air in reverse, shaking the pleated structure to dislodge dust into the collection device. The filtration area per unit volume is far greater than that of conventional filter bags.
Advantages: Extremely small footprint; large filtration area; high dust collection efficiency; easy installation and maintenance; low noise. Disadvantages: Poor temperature resistance (typically ≤120°C); high-humidity or oily dust can easily clog the cartridge; cartridge procurement cost is relatively high.
Filtration Flow
Step 1
dust-laden gas inlet
Step 2
filtration on the outer side of the cartridge
Step 3
clean gas collected from inside the cartridge and discharged
Cleaning Flow
Step 1
pulse reverse-jet
Step 2
cartridge shaking and dust shedding
Step 3
dust falls into collection box
Step 4
manual dust removal
Welding fume, laser cutting, grinding and polishing, machining, lithium battery, pharmaceutical, food, and other light-duty fine dust removal applications.
